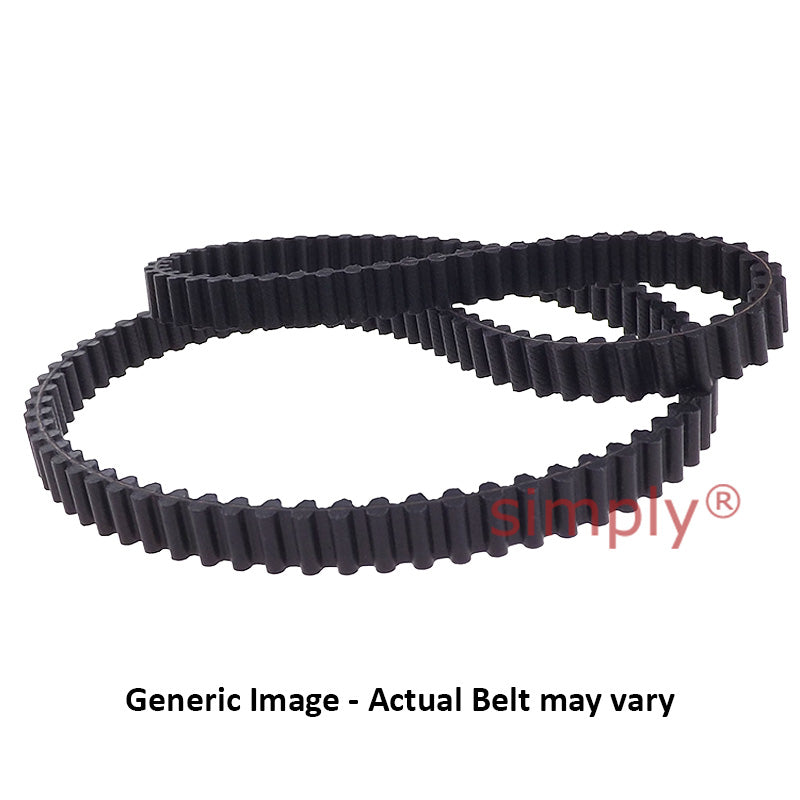

DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth
DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth
DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth
DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth

SKU: DD1190-14M-85

DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth

€361.14 ex VAT
€361,14
ex VAT
Equivalent to: 14M-1190
Not in stock

Quantity Price Breaks

3 €321.41
5 €303.36
10 €299.75
15 €296.13
20 €292.52
30 €288.91
40 €270.86
50 €267.24
60 €263.63
75 €260.02
100 €252.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth
DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth
SKU: DD1190-14M-85

DD1190-14M-85 Major Brand Double-Sided Timing Belt 85mm Wide 14mm Pitch 85 Teeth

€361.14 ex VAT
€361,14
ex VAT

Description

Double-Sided HTD Timing Belts 14mm Pitch Belt: Double-sided belts have teeth equally constructed on each side of the belt, which enables them to mesh with toothed pulleys on both the inside and outside. The construction of the belts is the same as standard Metric belts, except that the nylon facing is also on the backing teeth, enabling full torque transmission from each side of the belt.
Benefits: Reverse motion between internal and external pulleys
Require only one belt to drive a series of pulleys
Simplified design layouts and weight reduction.

Technical

Pitch length = 1190mm
Belt width = 85mm
Number of teeth = 85
Tooth pitch t = 14mm
Belt thickness h< = sub>
s< = /sub>
= 14.8mm
Tooth height h< = sub>
t< = /sub>
= 6mm
