SKU: 05B-1-NO26-SS-MB

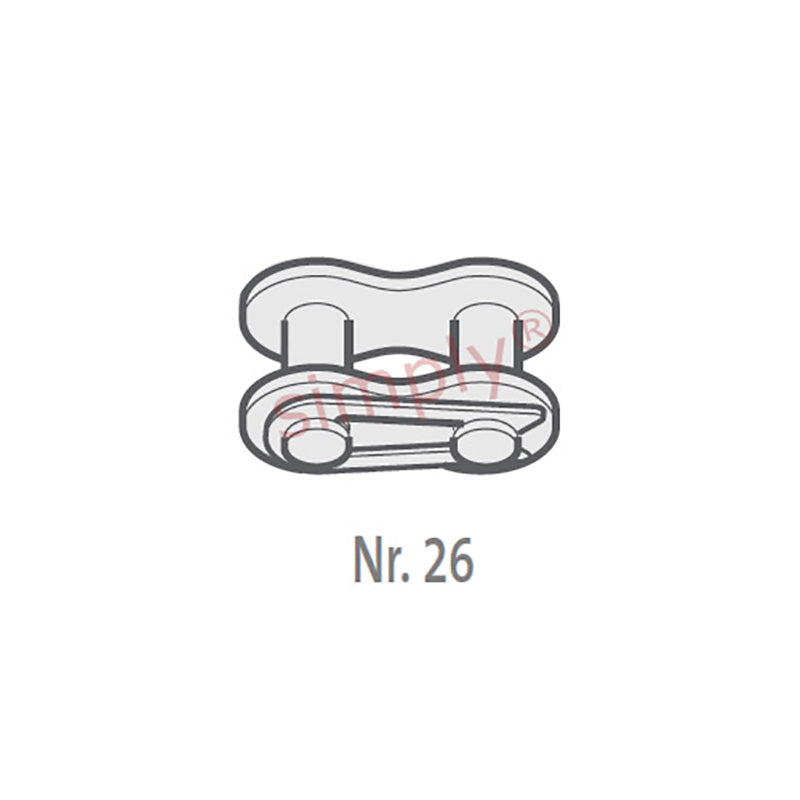

Major Brand 05B-1-NO26 BS Stainless Steel Simplex Chain Connecting Link With Spring Clip 8mm Pitch
- Regular price
- €9.26 ex VAT
- Sale price
- €9,26
- Regular price
-
In stock
Quantity Price Breaks
10
€8.24
19
€7.78
29
€7.69
39
€7.59
49
€7.50
74
€7.41
99
€6.95
199
€6.85
249
€6.76
499
€6.67
999
€6.48
SKU:
05B-1-NO26-SS-MB
Major Brand 05B-1-NO26 BS Stainless Steel Simplex Chain Connecting Link With Spring Clip 8mm Pitch
- Regular price
- €9.26 ex VAT
- Sale price
- €9,26
- Regular price
-
Description
Branded CL / No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Technical
| Pitch (A) | = | 0.315 inch |
| Pitch (A) | = | 8mm |
| Inside Width min (B) | = | 3mm |
| Roller Diameter max (C) | = | 5mm |
| Plate Height max (D) | = | 7.11mm |
| Plate Width Inner max (E) | = | 0.75mm |
| Plate Width Outer max (F) | = | 0.75mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H1) | = | 8mm |
| Connecting Link Extension max (J) | = | 0.9mm |
| ISO606 Tensile Strength min | = | 4400 N |
| Weight | = | 0.2kg/m |
