SKU: 05B-2-NO12-MB
Major Brand 05B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 8mm Pitch
- Regular price
- €6.63 ex VAT
- Sale price
- €6,63
- Regular price
-
In stock
Quantity Price Breaks
2
€5.90
5
€5.57
10
€5.50
29
€5.44
49
€5.37
75
€5.30
100
€4.97
200
€4.91
250
€4.84
500
€4.77
1000
€4.64
SKU:
05B-2-NO12-MB
Major Brand 05B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 8mm Pitch
- Regular price
- €6.63 ex VAT
- Sale price
- €6,63
- Regular price
-
Description

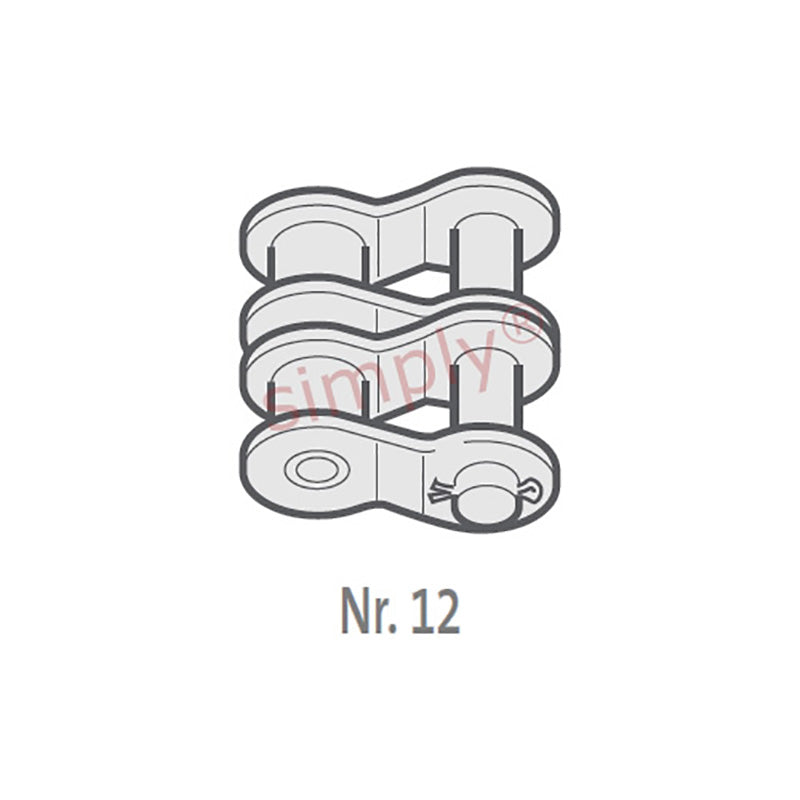

Branded OL / No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 0.315 inch |
| Pitch (A) | = | 8mm |
| Inside Width min (B) | = | 3mm |
| Roller Diameter max (C) | = | 5mm |
| Plate Height max (D) | = | 7.11mm |
| Plate Width Inner max (E) | = | 0.76mm |
| Plate Width Outer max (F) | = | 0.76mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H2) | = | 14.3mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| Transverse Pitch nom (K) | = | 5.64mm |
| ISO606 Tensile Strength min | = | 7800 N |
| Weight | = | 0.36kg/m |
