SKU: 06B-3-BB-NO30-RENOLD
Renold Blue Box 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €23.62 ex VAT
- Sale price
- €23,62
- Regular price
-
In stock
Quantity Price Breaks
2
€21.02
5
€19.84
10
€19.60
29
€19.37
49
€19.13
75
€18.90
100
€17.72
200
€17.48
250
€17.24
500
€17.01
1000
€16.53
SKU:
06B-3-BB-NO30-RENOLD
Renold Blue Box 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €23.62 ex VAT
- Sale price
- €23,62
- Regular price
-
Description

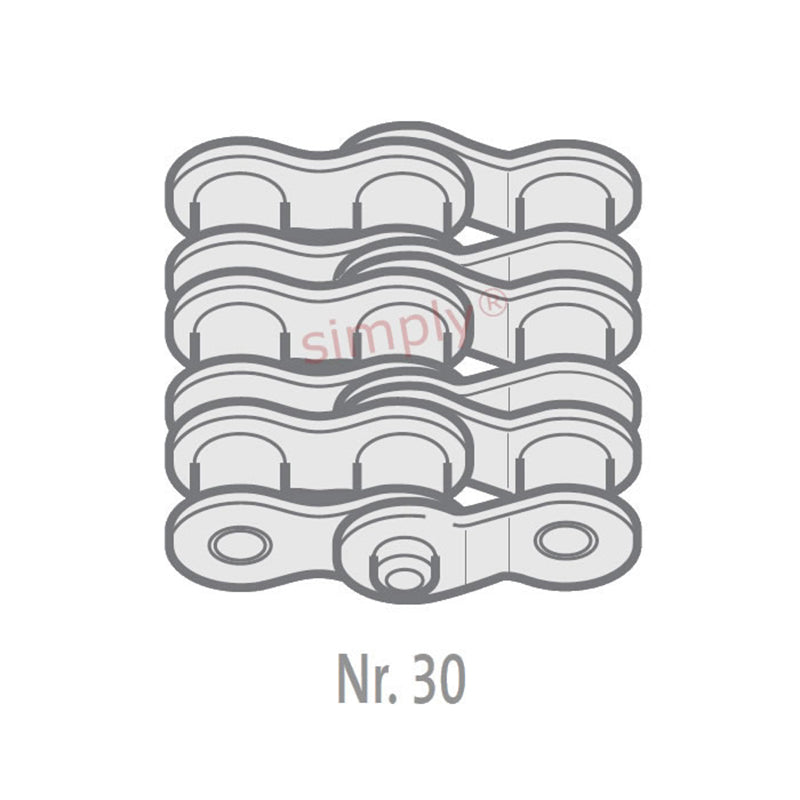

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H2) | = | 33.3mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 10.24mm |
| ISO606 Tensile Strength min | = | 24900 N |
| Weight | = | 0.004kg/m |
