SKU: 08B-1-SNX-NO26-RENOLD
Renold SYNO 08B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €14.01 ex VAT
- Sale price
- €14,01
- Regular price
-
Not in stock
Quantity Price Breaks
2
€12.47
5
€11.77
10
€11.63
29
€11.49
49
€11.35
75
€11.21
100
€10.51
200
€10.37
250
€10.23
500
€10.09
1000
€9.81
SKU:
08B-1-SNX-NO26-RENOLD
Renold SYNO 08B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €14.01 ex VAT
- Sale price
- €14,01
- Regular price
-
Description

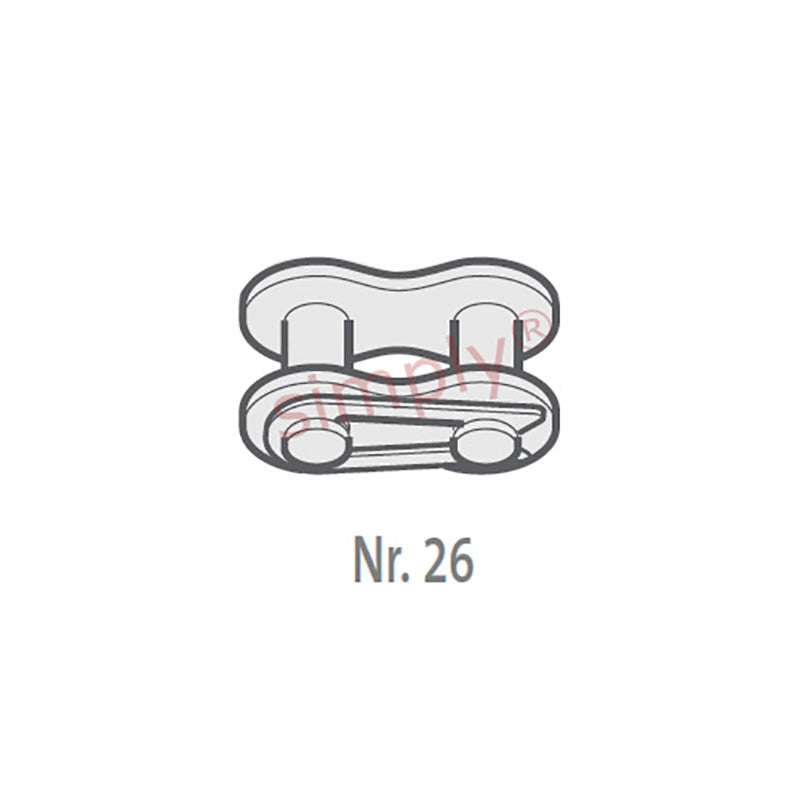

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
