SKU: 08B-2-BB-NO12-RENOLD
Renold Blue Box 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €17.72 ex VAT
- Sale price
- €17,72
- Regular price
-
In stock
Quantity Price Breaks
2
€15.77
5
€14.88
10
€14.71
29
€14.53
49
€14.35
75
€14.18
100
€13.29
200
€13.11
250
€12.94
500
€12.76
1000
€12.40
SKU:
08B-2-BB-NO12-RENOLD
Renold Blue Box 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €17.72 ex VAT
- Sale price
- €17,72
- Regular price
-
Description

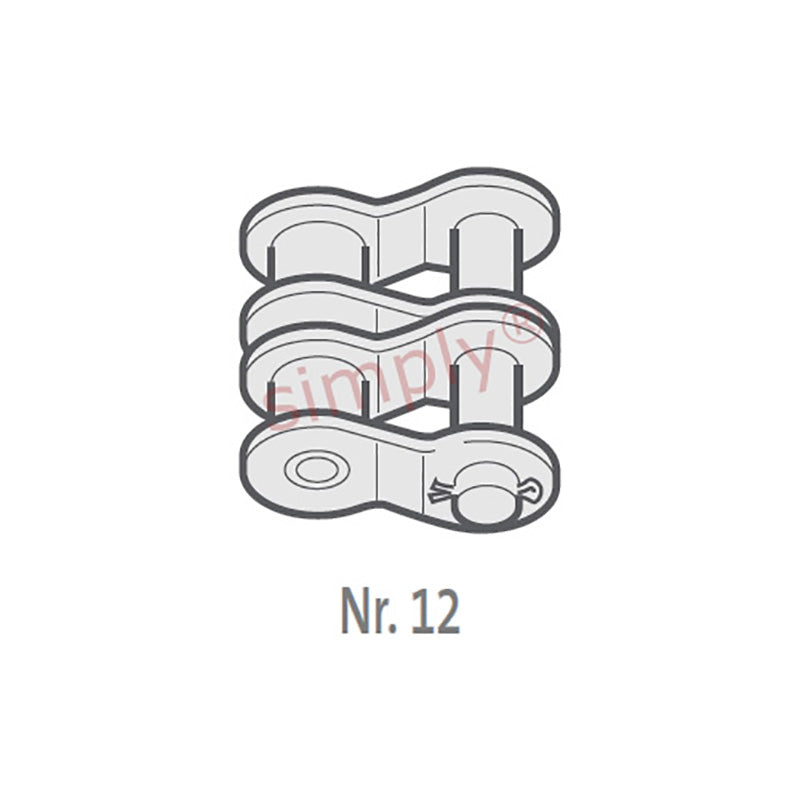

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 30.4mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
