SKU: 08B-3-BB-NO11-RENOLD
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- €12.91 ex VAT
- Sale price
- €12,91
- Regular price
-
In stock
Quantity Price Breaks
2
€11.49
5
€10.84
10
€10.72
29
€10.59
49
€10.46
75
€10.33
100
€9.68
200
€9.55
250
€9.42
500
€9.30
1000
€9.04
SKU:
08B-3-BB-NO11-RENOLD
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- €12.91 ex VAT
- Sale price
- €12,91
- Regular price
-
Description

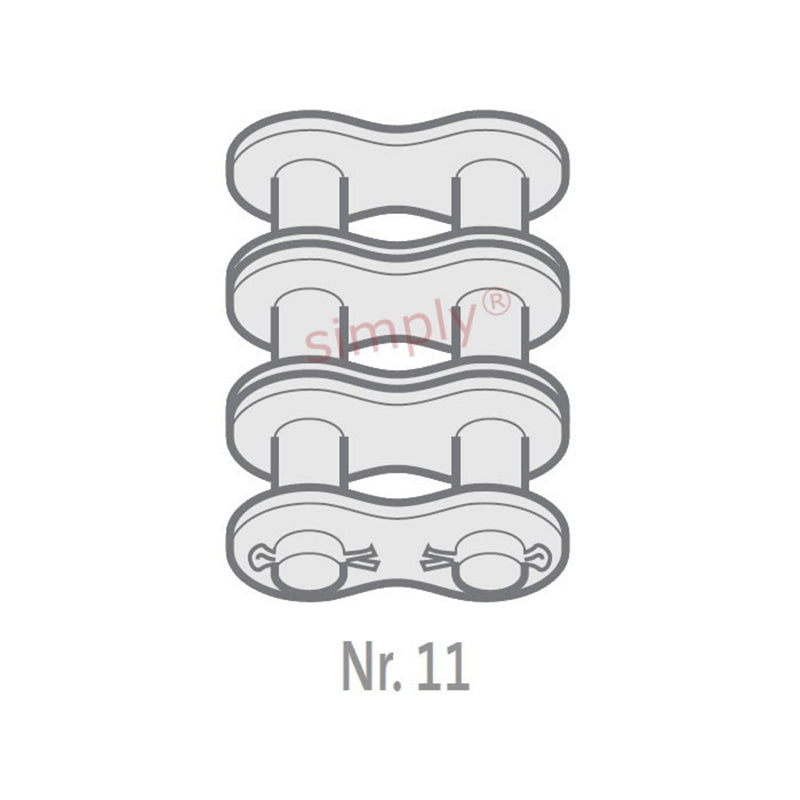

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.003kg/m |
