SKU: 08B-3-NO30-MB

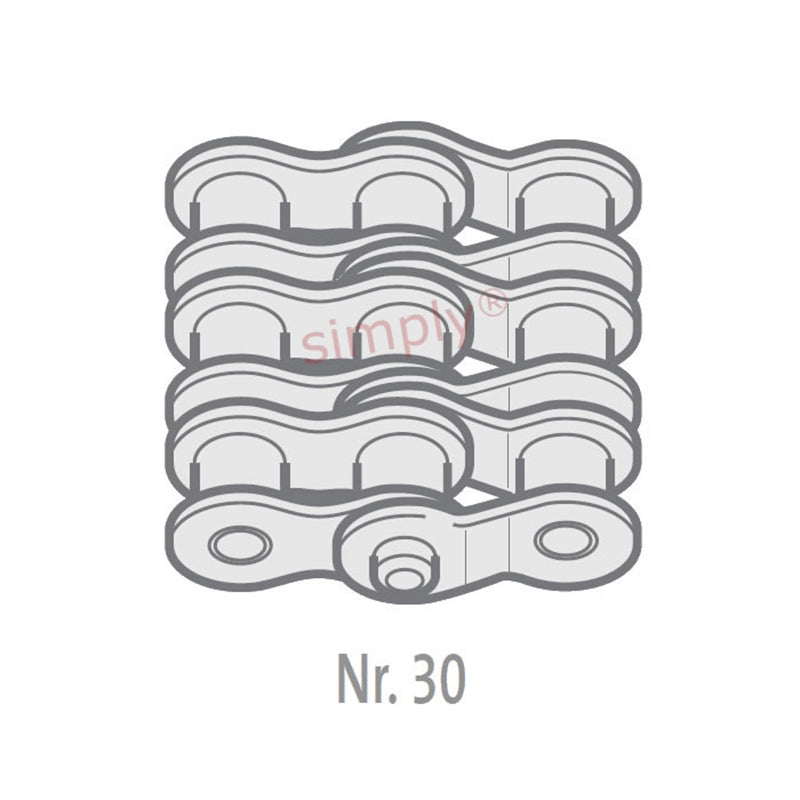

Branded 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €7.65 ex VAT
- Sale price
- €7,65
- Regular price
-
In stock
Quantity Price Breaks
2
€6.81
5
€6.43
10
€6.35
29
€6.27
49
€6.20
75
€6.12
100
€5.74
200
€5.66
250
€5.58
500
€5.51
1000
€5.36
SKU:
08B-3-NO30-MB
Branded 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €7.65 ex VAT
- Sale price
- €7,65
- Regular price
-
Description
Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.8mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H3) | = | 44.9mm |
| Connecting Link Extension max (J) | = | 3.9mm |
| ISO606 Tensile Strength min | = | 51150 N |
| Weight | = | 0.009kg/m |
