SKU: 08B-3-SYN-NO26-RENOLD
Renold Synergy 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €28.70 ex VAT
- Sale price
- €28,70
- Regular price
-
Not in stock
Quantity Price Breaks
2
€25.54
5
€24.11
10
€23.82
29
€23.53
49
€23.25
75
€22.96
100
€21.53
200
€21.24
250
€20.95
500
€20.66
1000
€20.09
SKU:
08B-3-SYN-NO26-RENOLD
Renold Synergy 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- €28.70 ex VAT
- Sale price
- €28,70
- Regular price
-
Description

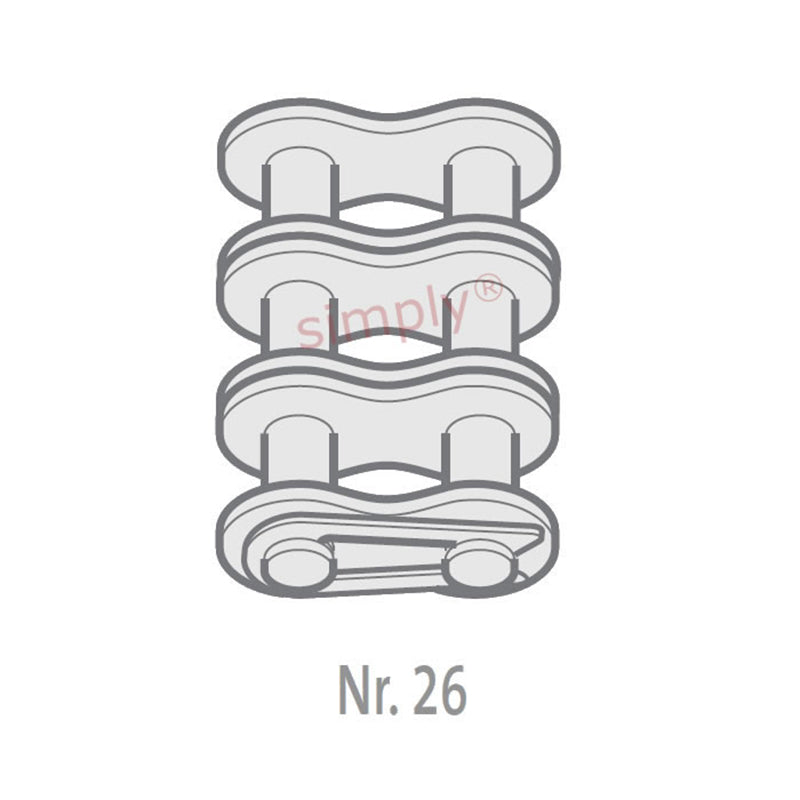

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.006kg/m |
