SKU: 09081/09196-EU

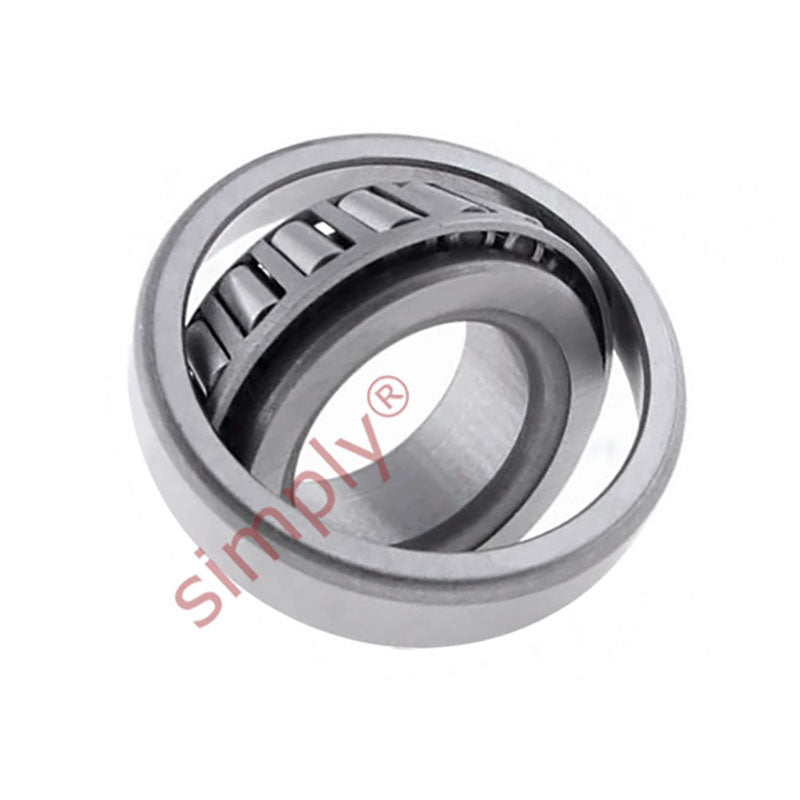

09081/09196 Premier Budget Imperial Single Row Taper Roller Bearing 0.812x1.938x0.9063 inch
- Regular price
- €14.03 ex VAT
- Sale price
- €14,03
- Regular price
-
Not in stock
Quantity Price Breaks
4
€12.49
9
€11.79
19
€11.64
29
€11.50
49
€11.36
99
€11.22
199
€10.52
249
€10.38
499
€10.24
699
€10.10
999
€9.82
SKU:
09081/09196-EU
09081/09196 Premier Budget Imperial Single Row Taper Roller Bearing 0.812x1.938x0.9063 inch
- Regular price
- €14.03 ex VAT
- Sale price
- €14,03
- Regular price
-
Description
Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

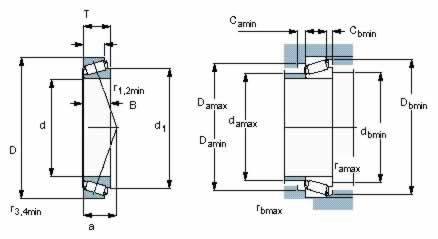

Technical
| d | = | 0.812 inch = 20.625mm |
| D | = | 1.938 inch = 49.225mm |
| T | = | 0.9063 inch = 23.02mm |
| Dynamic C | = | 11100 kN |
| Static Load | = | 40500 kN |
| Weight | = | 0.18 kg |
