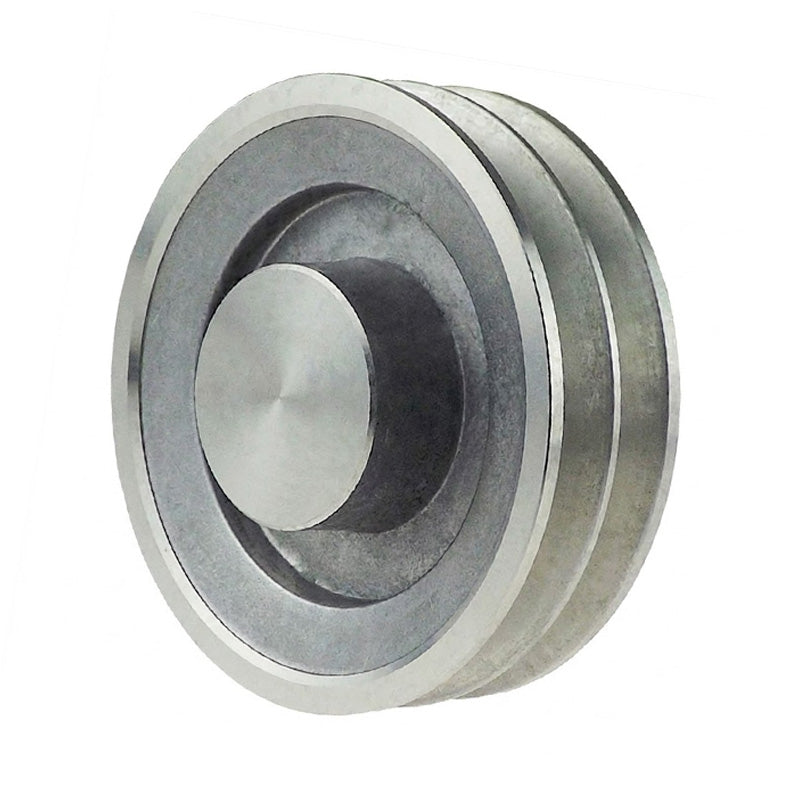

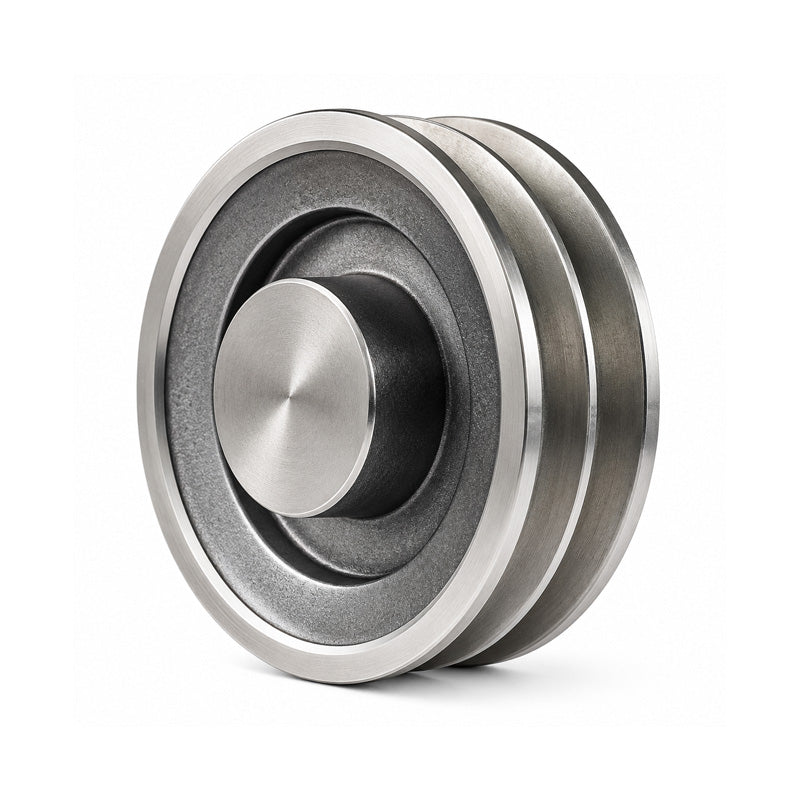

SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 90mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)

SKU: 090ASPZ2-ALUM

SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 90mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)

€26.64 ex VAT
€26,64
ex VAT
In stock

Quantity Price Breaks

3 €23.71
5 €22.38
9 €22.11
19 €21.84
49 €21.58
74 €21.31
99 €19.98
199 €19.71
249 €19.45
499 €19.18
999 €18.65
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 90mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)
SKU: 090ASPZ2-ALUM

SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 90mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)

€26.64 ex VAT
€26,64
ex VAT

Description

SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.

Technical

Number of Grooves = 2
Outer Diameter = 95mm
Pitch = 90mm
Hub Diameter = 55mm
Hub Width = 28mm
Weight = 0.419kg
