SKU: 0SS316-JUB

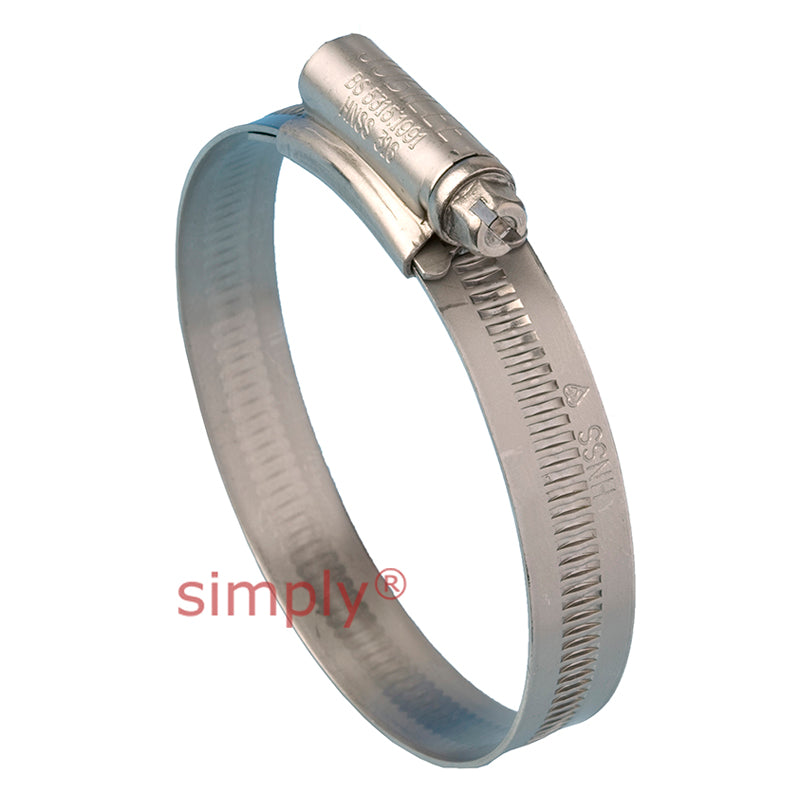

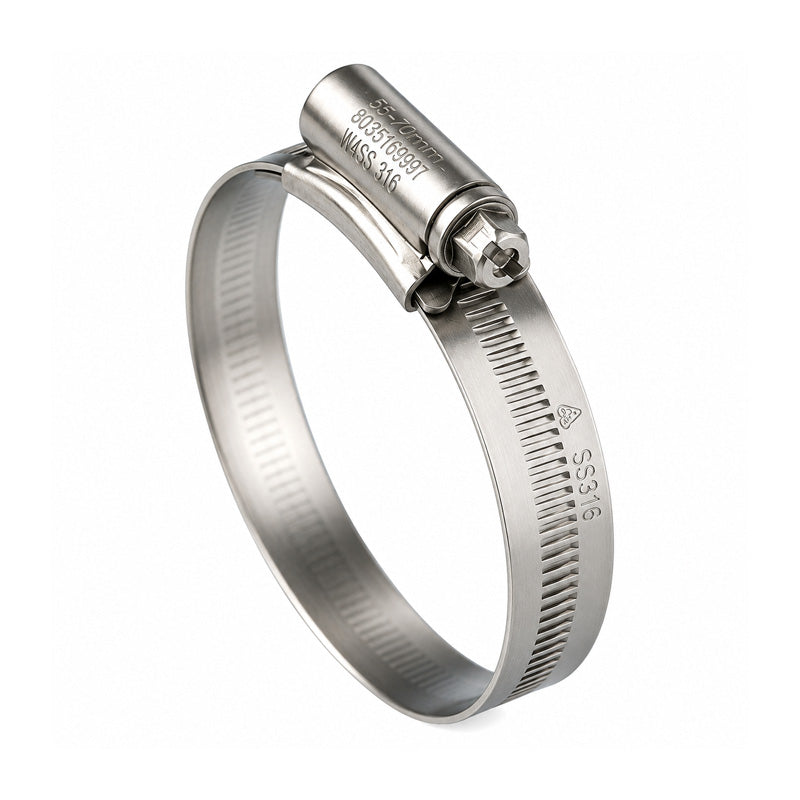

0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm
- Regular price
- €6.10 ex VAT
- Sale price
- €6,10
- Regular price
-
In stock
Quantity Price Breaks
3
€5.43
5
€5.12
9
€5.06
19
€5.00
49
€4.94
74
€4.88
99
€4.58
199
€4.51
249
€4.45
499
€4.39
999
€4.27
SKU:
0SS316-JUB
0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm
- Regular price
- €6.10 ex VAT
- Sale price
- €6,10
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 22 |
| Adjustment Range | = | 16mm - 22mm |
| Adjustment Range | = | 5/8 - 7/8 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 4.2Nm |
| Maximum Torque | = | 5.6Nm |
| Maximum Pressure | = | 203 Psi |
