SKU: 10.5x16x5.8_WP14_NAK

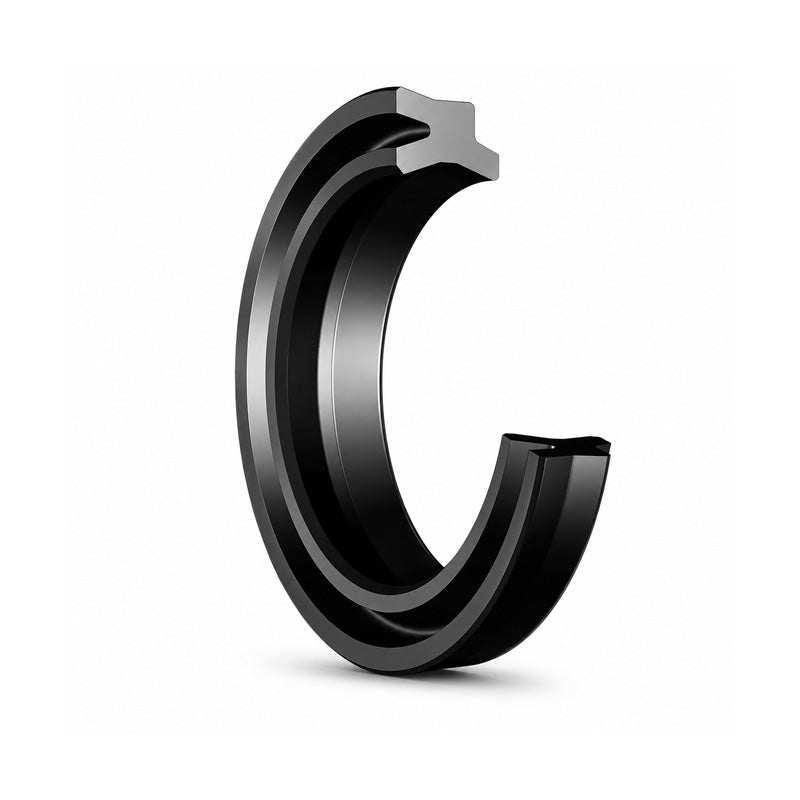

NAK 10.5x16x5.8mm WP14 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- €3.61 ex VAT
- Sale price
- €3,61
- Regular price
-
Not in stock
Quantity Price Breaks
10
€3.21
19
€3.03
29
€3.00
39
€2.96
49
€2.92
74
€2.89
99
€2.71
199
€2.67
249
€2.64
499
€2.60
999
€2.53
SKU:
10.5x16x5.8_WP14_NAK
NAK 10.5x16x5.8mm WP14 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- €3.61 ex VAT
- Sale price
- €3,61
- Regular price
-
Description
NAK WP14 Wiper Seals: WP14 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP14 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP14 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance

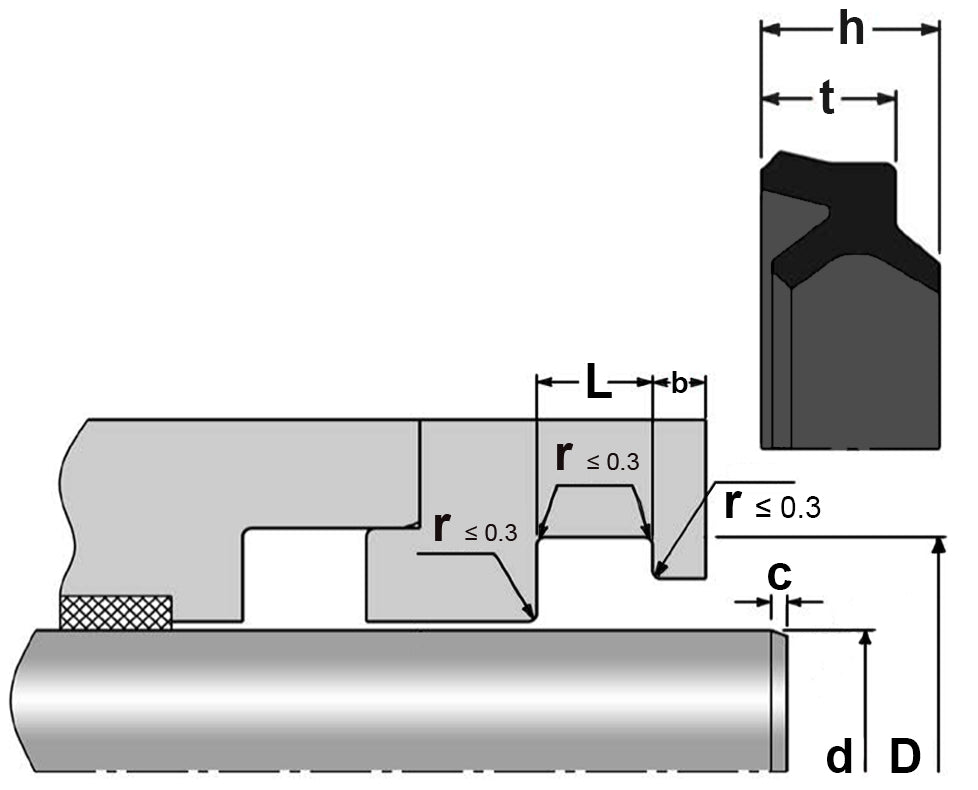

Technical
| d | = | 10.5mm |
| D | = | 16mm |
| L | = | 4.7mm |
| b | = | 2 |
| t | = | 4.2mm |
| h | = | 5.8mm |
| c | = | 1.5mm |
| Inside Diameter Tolerance | = | f13 |
| Outside Diameter Tolerance | = | 0.2mm |
| Length Tolerance | = | 0.2mm |
| Running Speed v | = | 6 m/s |
| Temperature | = | -35 Deg C to +100 Deg C |
| Colour | = | Black |
