SKU: 100-3-BB-NO58-RENOLD
Renold Blue Box 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €74.14 ex VAT
- Sale price
- €74,14
- Regular price
-
Not in stock
Quantity Price Breaks
2
€65.98
5
€62.28
10
€61.54
29
€60.79
49
€60.05
75
€59.31
100
€55.61
200
€54.86
250
€54.12
500
€53.38
1000
€51.90
SKU:
100-3-BB-NO58-RENOLD
Renold Blue Box 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €74.14 ex VAT
- Sale price
- €74,14
- Regular price
-
Description

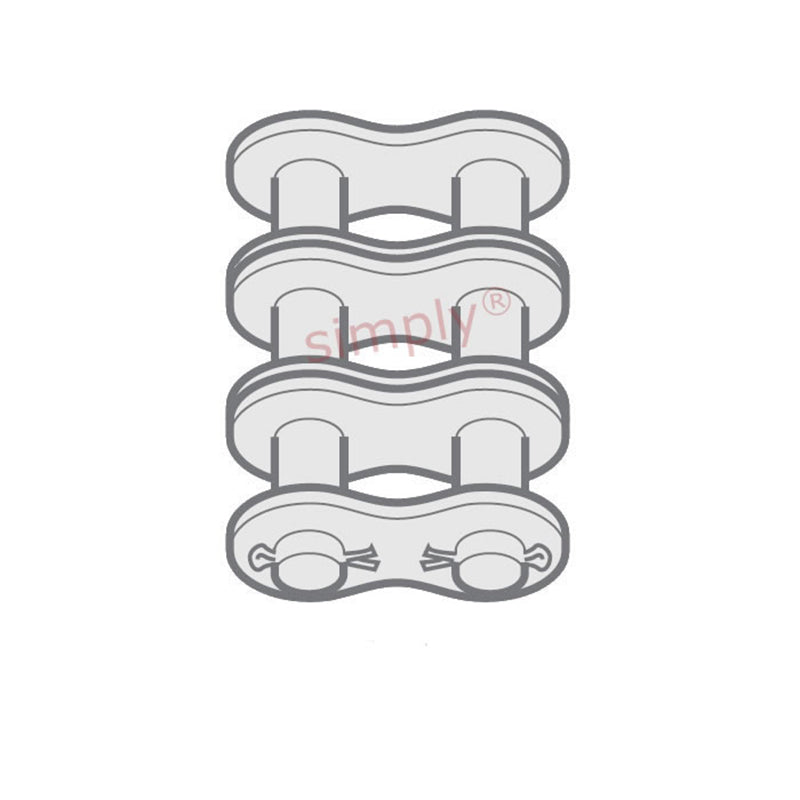

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.17mm |
| Plate Width Inner max (E) | = | 4.06mm |
| Plate Width Outer max (F) | = | 4.06mm |
| Pin Diameter max (G) | = | 9.54mm |
| Pin Length max (H2) | = | 111.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 261000 N |
| Weight | = | 0.12kg/m |
