SKU: 10101-EU

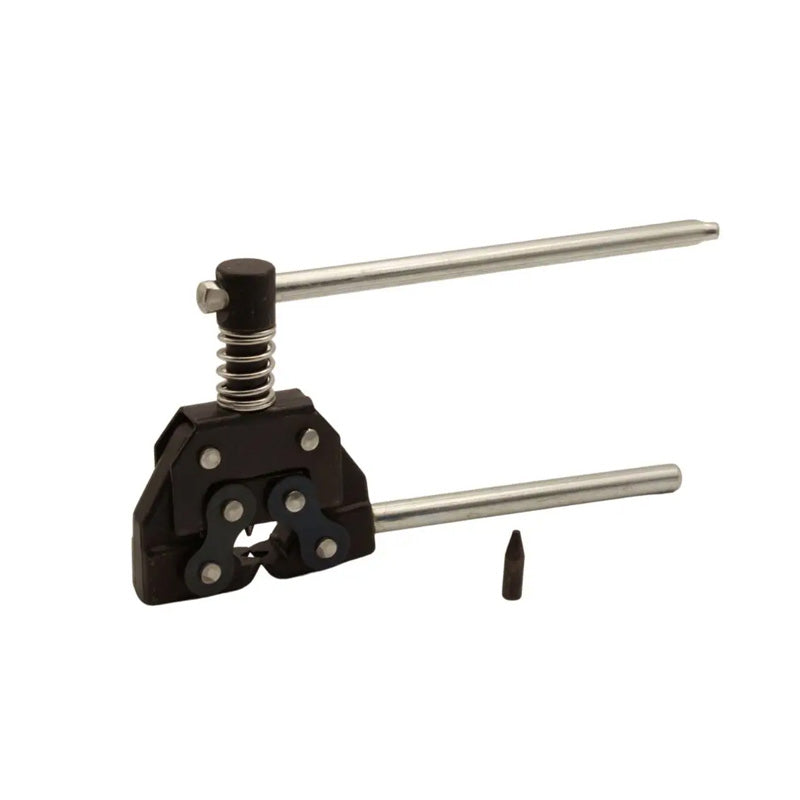

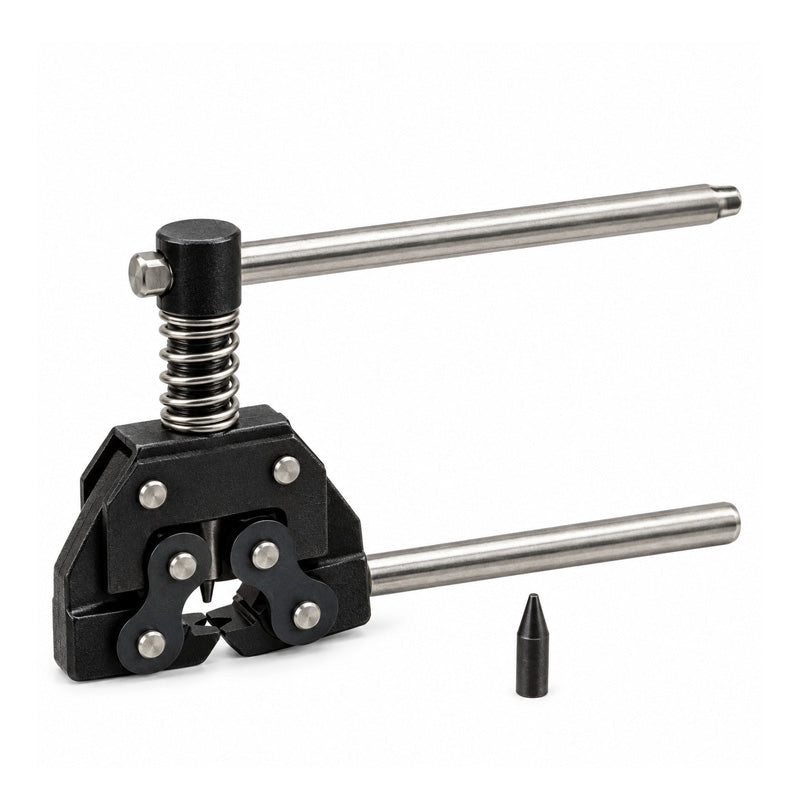

Budget 10101 Chain Breaker / Splitter for 1/4 to 3/4 Inch Pitch Chain
- Regular price
- €41.12 ex VAT
- Sale price
- €41,12
- Regular price
-
In stock
Quantity Price Breaks
10
€36.60
19
€34.54
29
€34.13
39
€33.72
49
€33.31
74
€32.90
99
€30.84
199
€30.43
249
€30.02
499
€29.61
999
€28.78
SKU:
10101-EU
Budget 10101 Chain Breaker / Splitter for 1/4 to 3/4 Inch Pitch Chain
- Regular price
- €41.12 ex VAT
- Sale price
- €41,12
- Regular price
-
Description
Chain Splitter: Removes link from pin, forged steel jaws, press out tip made of tool steel. Suitable for Simplex and Duplex chains.
ISP - Robust design, Replaceable head for extended lifespan (repalcement included), Easy to operate design.
A step by step guide on how to correctly use this tool is listed below.
- 1. Place jaws of tool over roller with push-out pin centered on chain pin.
- 2. Tighten down by turning top handle clockwise until chain pin loosens, driving it partially through the link plate. Do not force pin all the way through link plate as pin plate will bend and damage roller link.
- 3. Follow same procedure on other pin of the same pin link.
- 4. Return to original pin and force completely through pin plate. Do the same on second pin freeing link plate from the pins.
- 5. Remove disassembled pin link from the chain
Tip: Keep Screw Greased
- 5. Remove disassembled pin link from the chain
- 4. Return to original pin and force completely through pin plate. Do the same on second pin freeing link plate from the pins.
- 3. Follow same procedure on other pin of the same pin link.
- 2. Tighten down by turning top handle clockwise until chain pin loosens, driving it partially through the link plate. Do not force pin all the way through link plate as pin plate will bend and damage roller link.
