SKU: 1035-1.3/8G-RHP

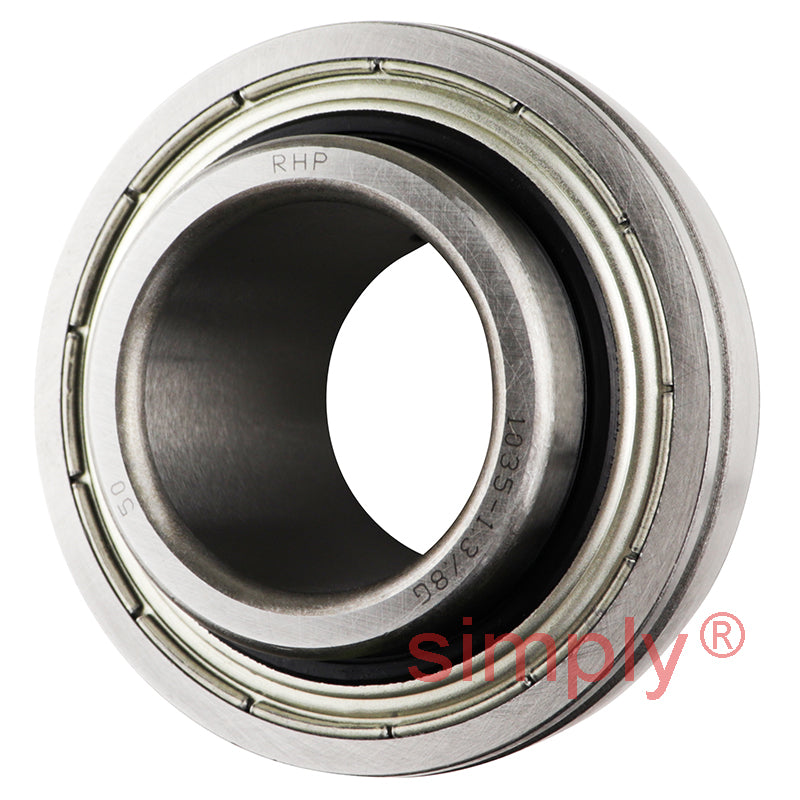

RHP 1035-1-3/8G Spherical Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
- Regular price
- €40.49 ex VAT
- Sale price
- €40,49
- Regular price
-
In stock
Quantity Price Breaks
10
€36.04
20
€34.01
30
€33.61
40
€33.20
50
€32.80
75
€32.39
100
€30.37
200
€29.96
250
€29.56
500
€29.15
1000
€28.34
SKU:
1035-1.3/8G-RHP
RHP 1035-1-3/8G Spherical Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
- Regular price
- €40.49 ex VAT
- Sale price
- €40,49
- Regular price
-
Description
|

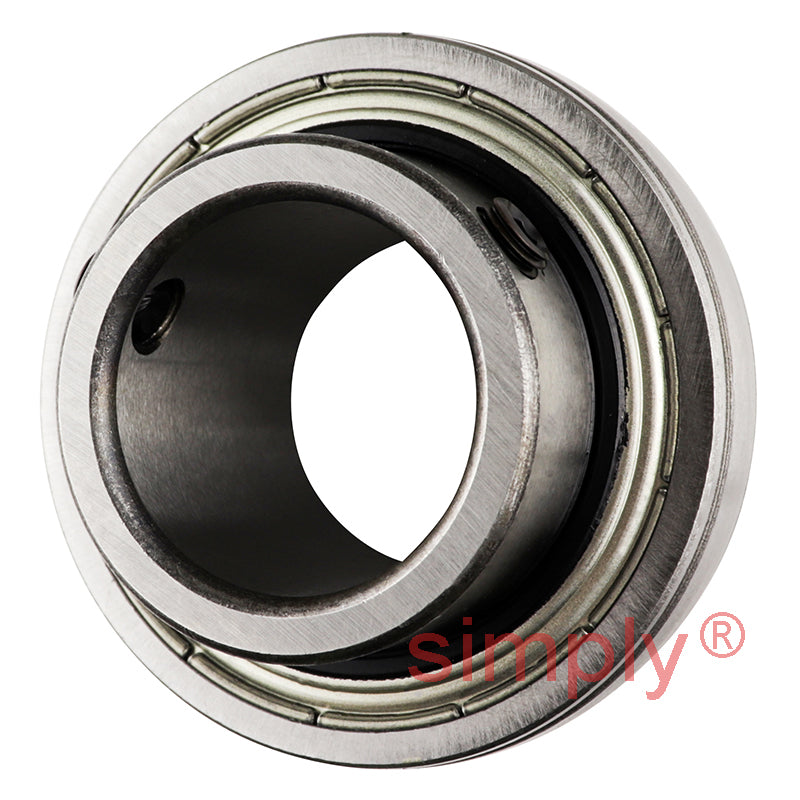

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| Bore | = | 1-3/8 inch |
| D | = | 2.8346 inch |
| C | = | 0.669 inch |
| B | = | 1.688 inch |
| s | = | 0.69 inch |
| d1 | = | 1.838 inch |
| M | = | 0.289 inch |
| r | = | 0.039 inch |
| Dynamic load Cr | = | 25700 N |
| Static load Cor | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 0.51 kg |
