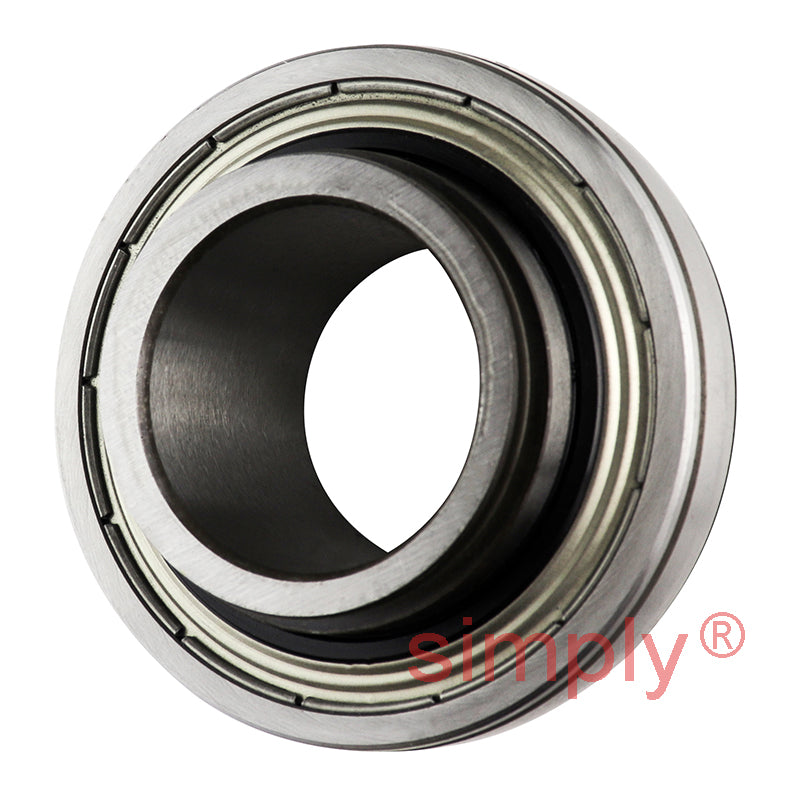

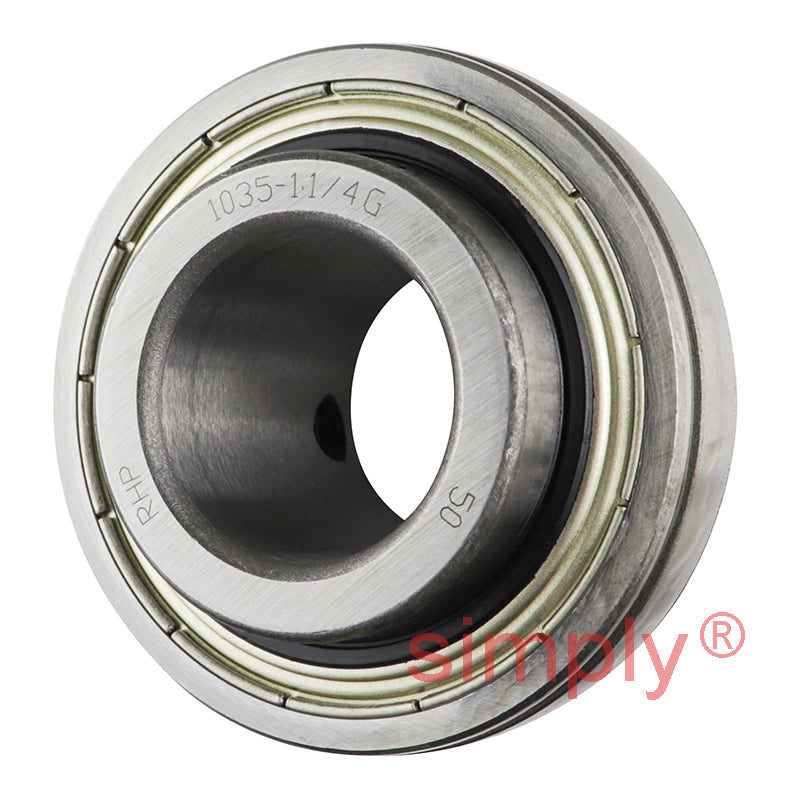

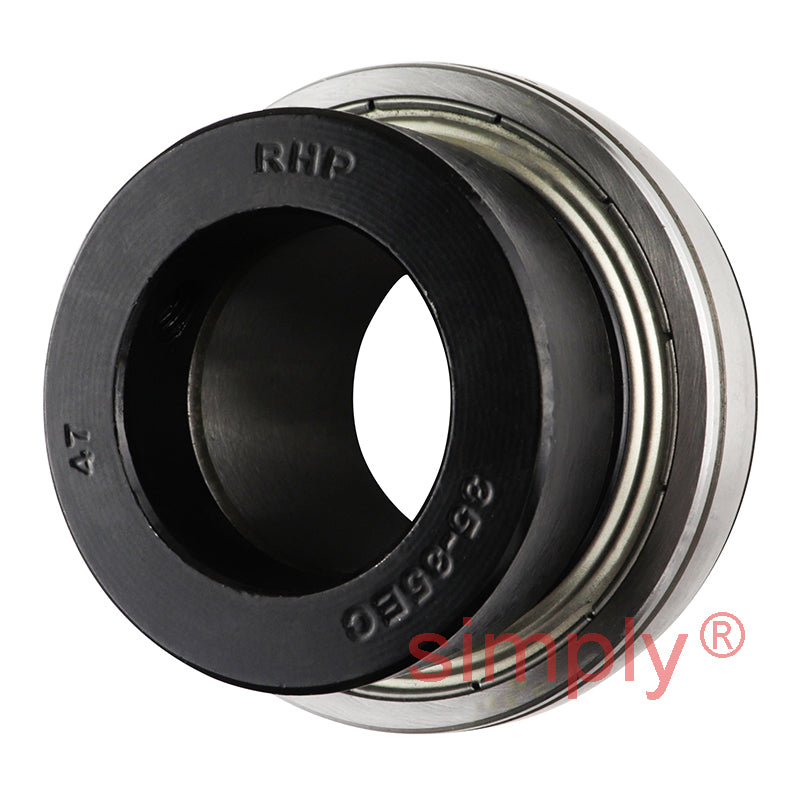

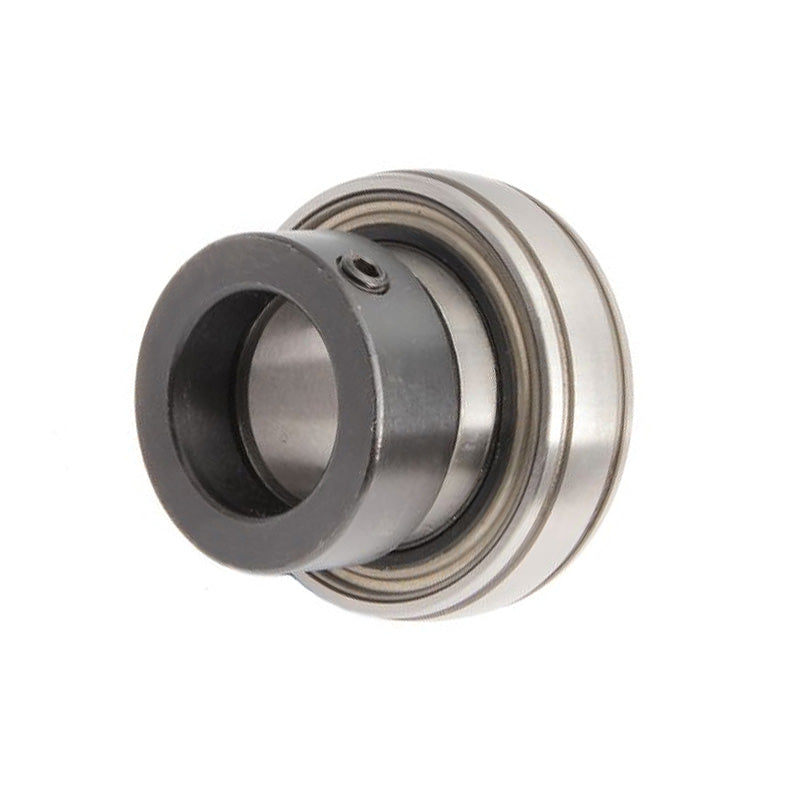

RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter

SKU: 1035-35DECG-RHP

RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter

€49.61 ex VAT
€49,61
ex VAT
In stock

Quantity Price Breaks

10 €44.15
20 €41.67
30 €41.18
40 €40.68
50 €40.18
75 €39.69
100 €37.21
200 €36.71
250 €36.22
500 €35.72
1000 €34.73
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter
SKU: 1035-35DECG-RHP

RHP 1035-35DECG Spherical Outer Full Width Bearing Insert 35mm Bore 72mm Outside Diameter

€49.61 ex VAT
€49,61
ex VAT

Description

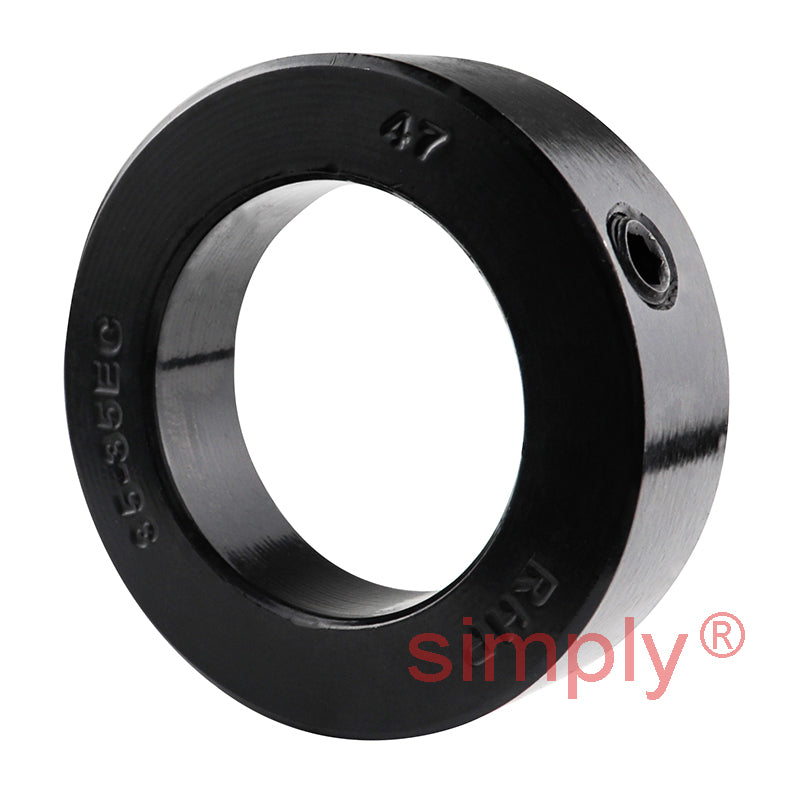

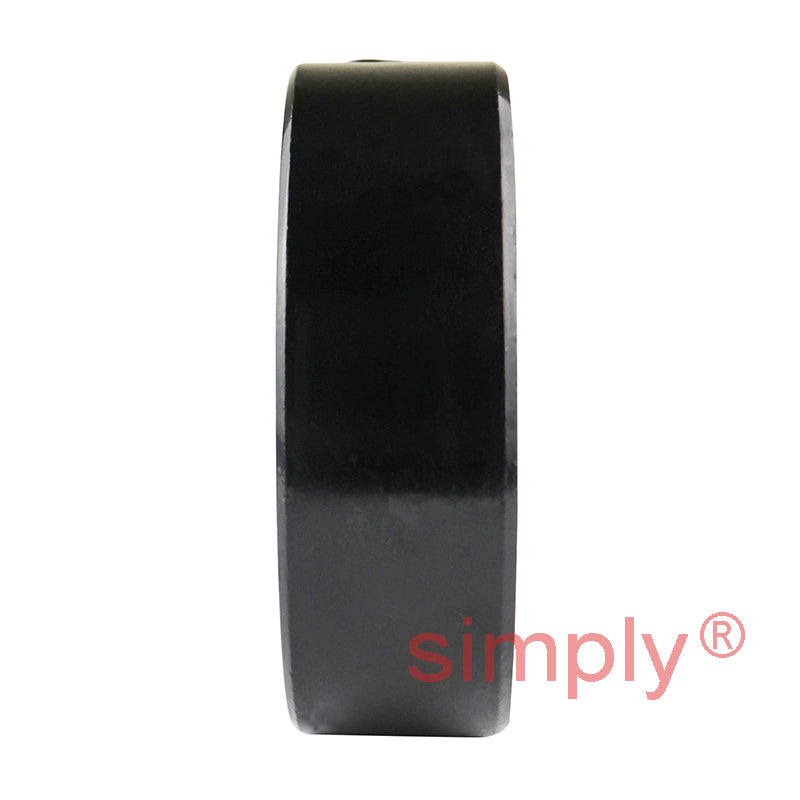

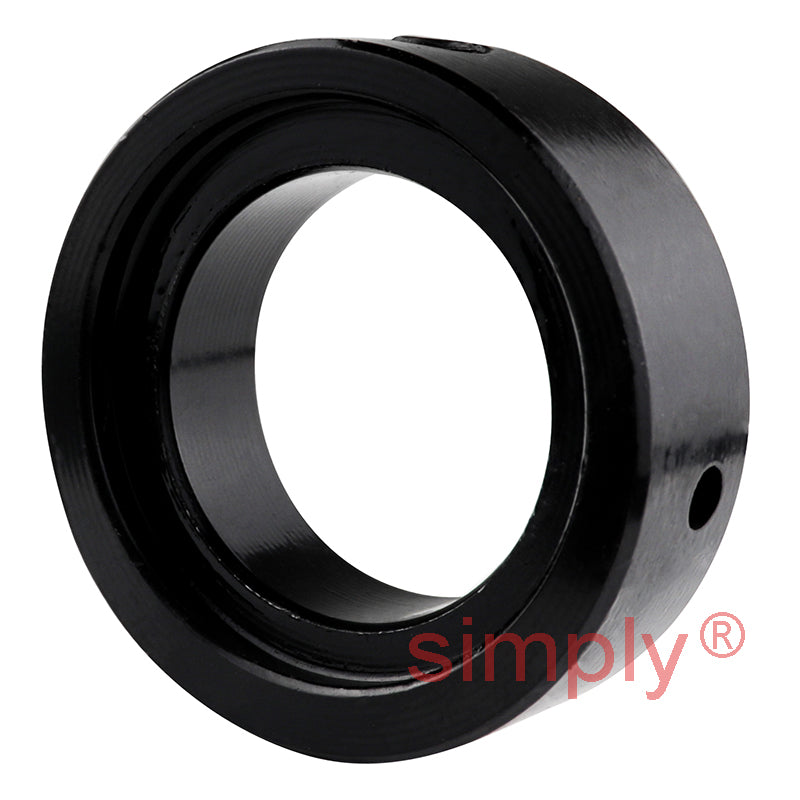

RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing

Technical

Bore = 35mm
D = 72mm
C = 17mm
B3 = 51.18mm
s2 = 18.89mm
d2 = 55.58mm
r = 1mm
Dynamic load Cr = 25700 N
Static load Cor = 15300 N
Rec max speed = 4500 rpm
Weight = 0.7 kg
