SKU: 10802601-ROLL-RING
Renold 108-026-01 26 26 Tooth 08-B Roll Ring for 1/2 inch Pitch - Ambient Temperature -20 to+70 Deg C
- Regular price
- €71.71 ex VAT
- Sale price
- €71,71
- Regular price
-
In stock
Quantity Price Breaks
10
€63.82
19
€60.24
29
€59.52
39
€58.80
49
€58.09
74
€57.37
99
€53.78
199
€53.07
249
€52.35
499
€51.63
999
€50.20
SKU:
10802601-ROLL-RING
Renold 108-026-01 26 26 Tooth 08-B Roll Ring for 1/2 inch Pitch - Ambient Temperature -20 to+70 Deg C
- Regular price
- €71.71 ex VAT
- Sale price
- €71,71
- Regular price
-
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
Technical

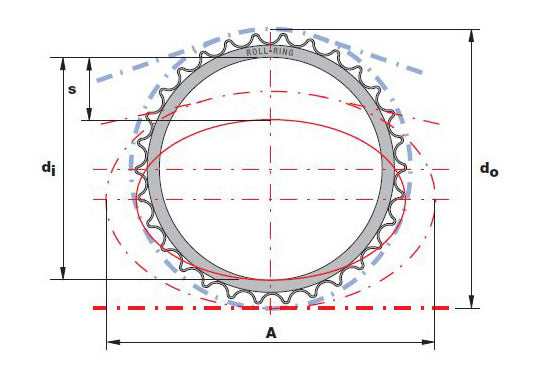

| do | = | 105.5mm |
| di | = | 87.5mm |
| s | = | 27mm |
| A | = | 135mm |
| D = do-s | = | 78.5mm |
| Chain Dimension - p x b1- inches | = | 1/2x5/16 |
| Max Static Expansive Force - N** | = | 13.4 |
| Maximum Chain Speed m/s | = | 7.5 |
| Ambient Temperature (& | = | deg |
| C) | = | -20 to+70 |
| Weight (kg) | = | 0.012 |
