SKU: 10B-3-BB-NO30-RENOLD
Renold Blue Box 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €25.67 ex VAT
- Sale price
- €25,67
- Regular price
-
Not in stock
Quantity Price Breaks
2
€22.85
5
€21.56
10
€21.31
29
€21.05
49
€20.79
75
€20.54
100
€19.25
200
€19.00
250
€18.74
500
€18.48
1000
€17.97
SKU:
10B-3-BB-NO30-RENOLD
Renold Blue Box 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €25.67 ex VAT
- Sale price
- €25,67
- Regular price
-
Description

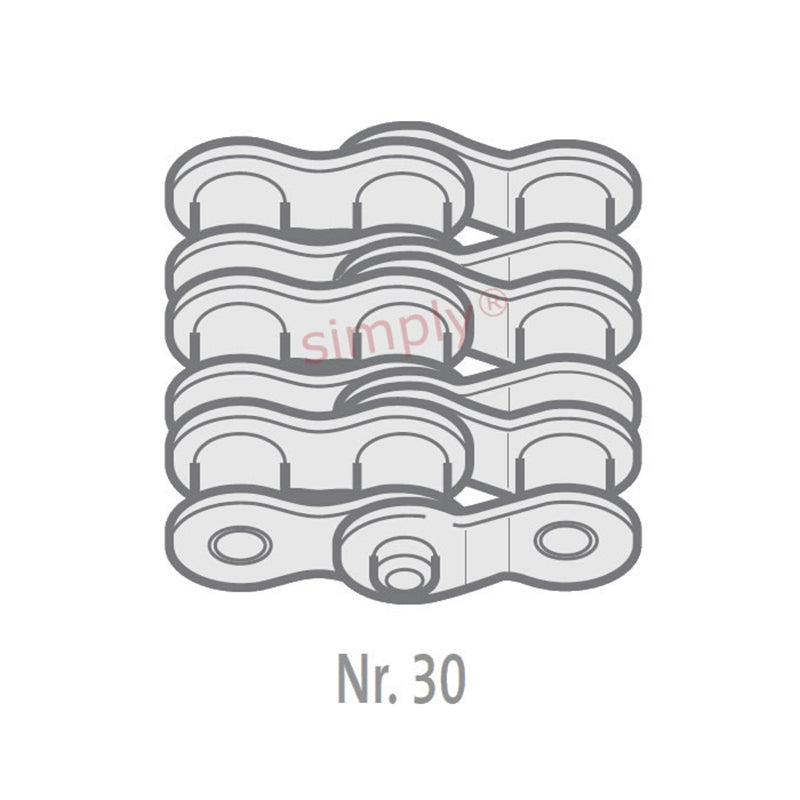

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 52mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 66700 N |
| Weight | = | 0.009kg/m |
