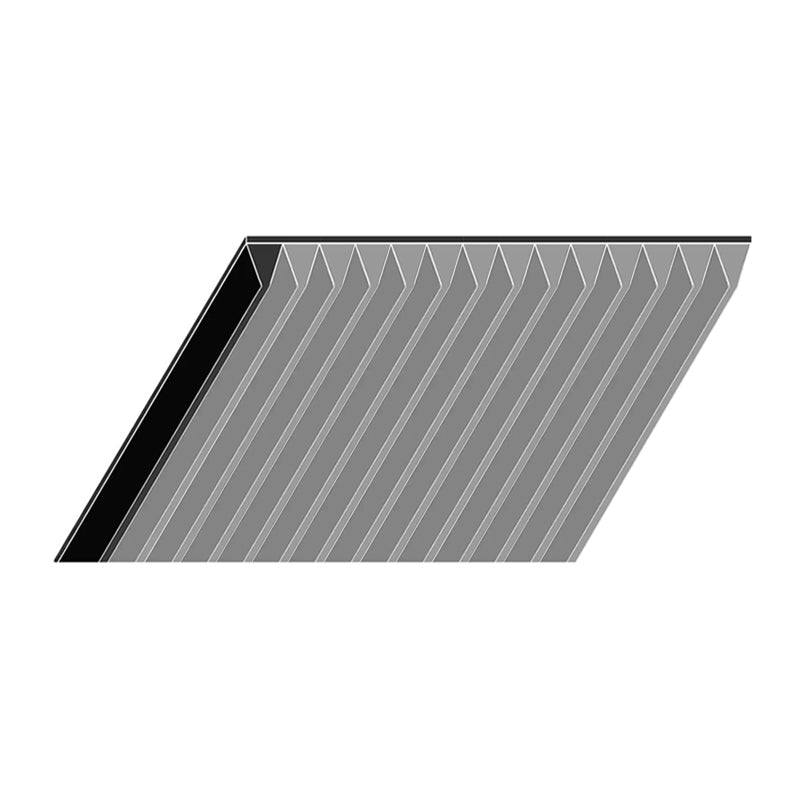

1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs
1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs
1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs
1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs

SKU: 1194PL/470L_14RIBS

1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs

€78.04 ex VAT
€78,04
ex VAT
Equivalent to: 1194L
In stock

Quantity Price Breaks

10+ €69.46
19+ €65.55
29+ €64.77
39+ €63.99
49+ €63.21
74+ €62.43
99+ €58.53
199+ €57.75
249+ €56.97
499+ €56.19
999+ €54.63
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs
1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs
SKU: 1194PL/470L_14RIBS

1194PL/470L Major Brand Poly V Multiple Ribbed Belt 1194mm/47 inch Length with 14 Ribs

€78.04 ex VAT
€78,04
ex VAT

Description

L Section Poly V Belts 6.6 - 9mm depth with 4.7mm pitch between the ribs: The Poly-V belt is a single, endless belt with longitudinal V-shaped ribs that mate perfectly with the V-grooves in the pulleys (sheaves). It combines the convenience of a thin, one-piece flat belt with the strong gripping traction of multiple V-belts to make the Poly-V belt far better than either for many applications. The approximate belt width is the number of ribs multiplied by 4.7mm
To distribute the drive load evenly across the full width of the sheave, the Poly-V belt is built as a single unit with a completely supported, uninterrupted tension member. There is no matching problem. No separate belts to turn over, grab, slip, or interfere with each other.
The thin cross section profile allows use of smaller pulleys than standard V-belts, and Poly-V belts handle speed ratios of 40:1. With all this capacity, the Poly-V belt tracks properly without special guides, flanges, crowns, or deep grooves. And it resists seating in the grooves, so speed ratios remain more consistent and output speed remains more uniform.
Benefits: Oil, heat, ozone, and abrasion resistant, static conductive
