SKU: 120-3-BB-NO58-RENOLD
Renold Blue Box 120-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €157.90 ex VAT
- Sale price
- €157,90
- Regular price
-
Not in stock
Quantity Price Breaks
2
€140.53
5
€132.64
10
€131.06
29
€129.48
49
€127.90
75
€126.32
100
€118.43
200
€116.85
250
€115.27
500
€113.69
1000
€110.53
SKU:
120-3-BB-NO58-RENOLD
Renold Blue Box 120-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €157.90 ex VAT
- Sale price
- €157,90
- Regular price
-
Description

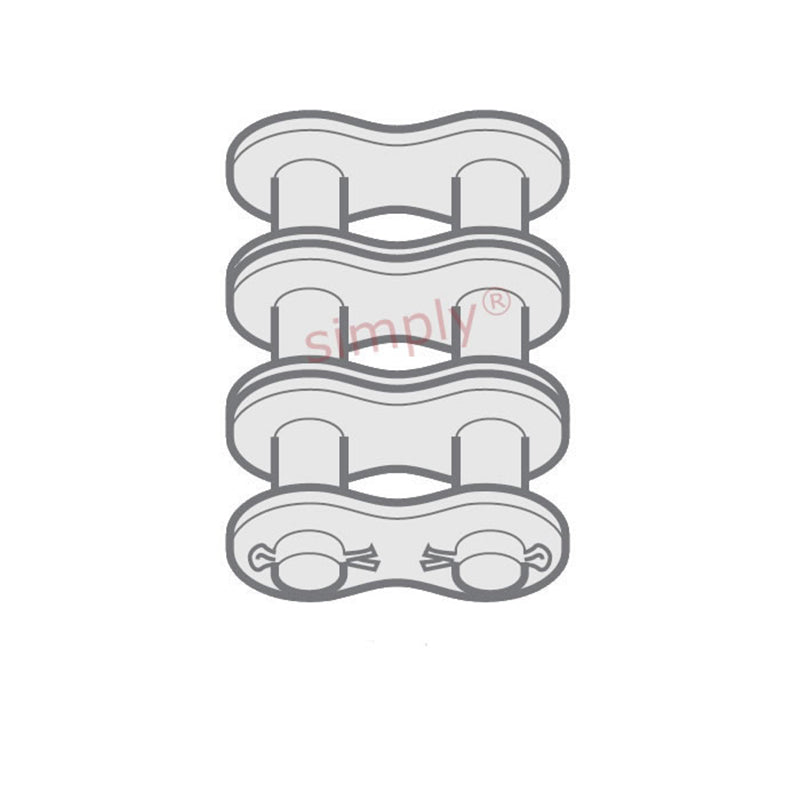

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 22.23mm |
| Plate Height max (D) | = | 36.2mm |
| Plate Width Inner max (E) | = | 4.8mm |
| Plate Width Outer max (F) | = | 4.8mm |
| Pin Diameter max (G) | = | 11.11mm |
| Pin Length max (H2) | = | 140.2mm |
| Connecting Link Extension max (J) | = | 5.3mm |
| Transverse Pitch nom (K) | = | 45.44mm |
| ISO606 Tensile Strength min | = | 375000 N |
| Weight | = | 0.229kg/m |
