SKU: 1212K-KSM

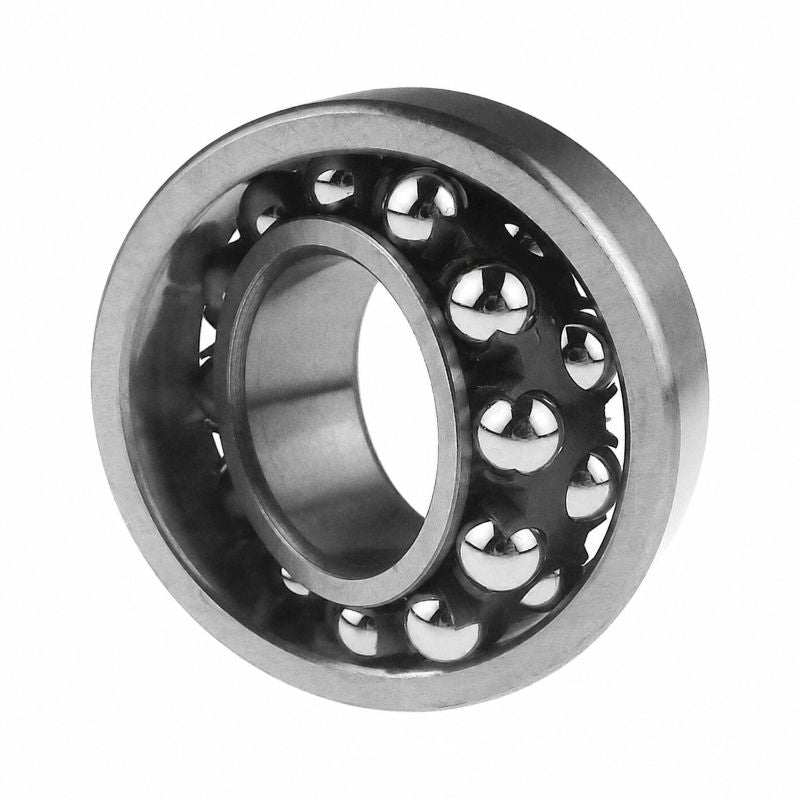

KSM 1212K Open Self Aligning Ball Bearing with Tapered Bore 60x110x22mm
- Regular price
- €45.60 ex VAT
- Sale price
- €45,60
- Regular price
-
Not in stock
Quantity Price Breaks
4
€40.58
9
€38.30
19
€37.85
29
€37.39
49
€36.94
99
€36.48
179
€34.20
249
€33.74
499
€33.29
699
€32.83
999
€31.92
SKU:
1212K-KSM
KSM 1212K Open Self Aligning Ball Bearing with Tapered Bore 60x110x22mm
- Regular price
- €45.60 ex VAT
- Sale price
- €45,60
- Regular price
-
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
Technical

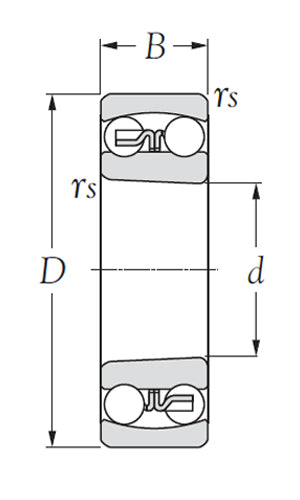

| --- | = | Bearing Dimensions |
| d | = | 60mm |
| D | = | 110mm |
| B | = | 22mm |
| r1r2 min | = | 1.5mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 30000 N |
| Basic Static Load Raiting Cor | = | 11500 N |
| Limiting Speed in Grease | = | 4900 rpm |
| Limiting Speed in Oil | = | 5800 rpm |
| Weight | = | 0.879 kg |
| --- | = | Matching Adaptor Sleeves |
| Sleeve No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=H212+sleeve> | = | H212< |
| /a> | = | |
| Sleeve No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=HS212+sleeve> | = | HS212< |
| /a> | = |
