SKU: 12B-2-SNX-NO30-RENOLD
Renold SYNO 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €57.25 ex VAT
- Sale price
- €57,25
- Regular price
-
Not in stock
Quantity Price Breaks
2
€50.95
5
€48.09
10
€47.52
29
€46.95
49
€46.37
75
€45.80
100
€42.94
200
€42.37
250
€41.79
500
€41.22
1000
€40.08
SKU:
12B-2-SNX-NO30-RENOLD
Renold SYNO 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €57.25 ex VAT
- Sale price
- €57,25
- Regular price
-
Description
| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical

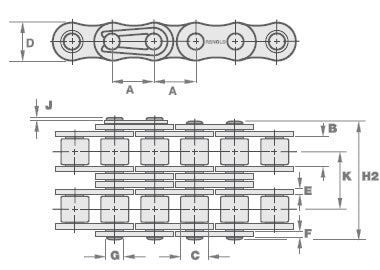

| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 41.4mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
