SKU: 140-2-BB-NO11-RENOLD
Renold Blue Box 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €146.34 ex VAT
- Sale price
- €146,34
- Regular price
-
Not in stock
Quantity Price Breaks
2
€130.24
5
€122.93
10
€121.46
29
€120.00
49
€118.54
75
€117.07
100
€109.76
200
€108.29
250
€106.83
500
€105.36
1000
€102.44
SKU:
140-2-BB-NO11-RENOLD
Renold Blue Box 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €146.34 ex VAT
- Sale price
- €146,34
- Regular price
-
Description

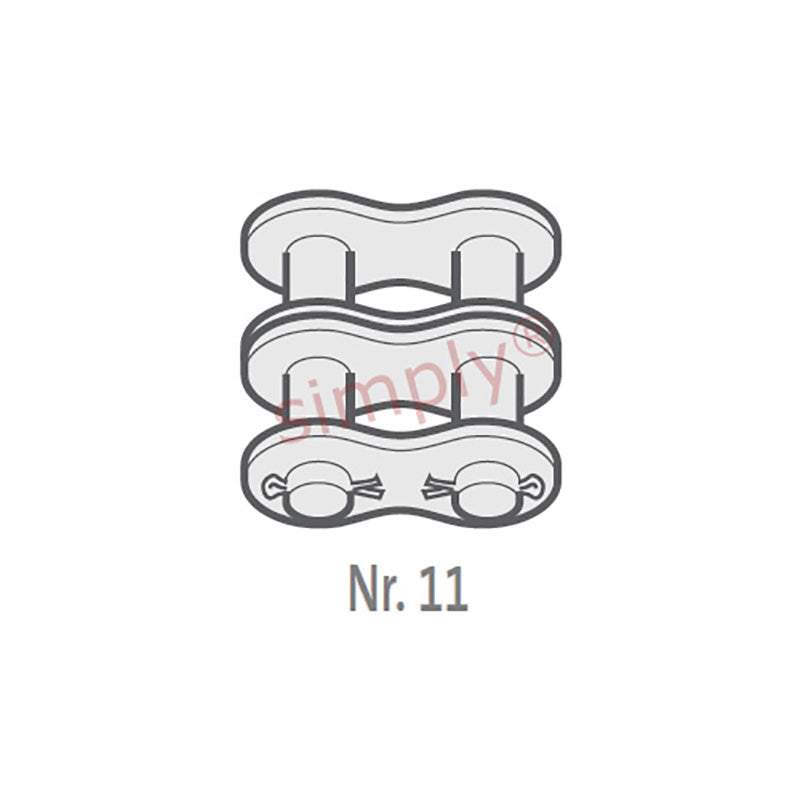

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 101.8mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 340000 N |
| Weight | = | 0.77kg/m |
