SKU: 14x22x7_WP13_NAK

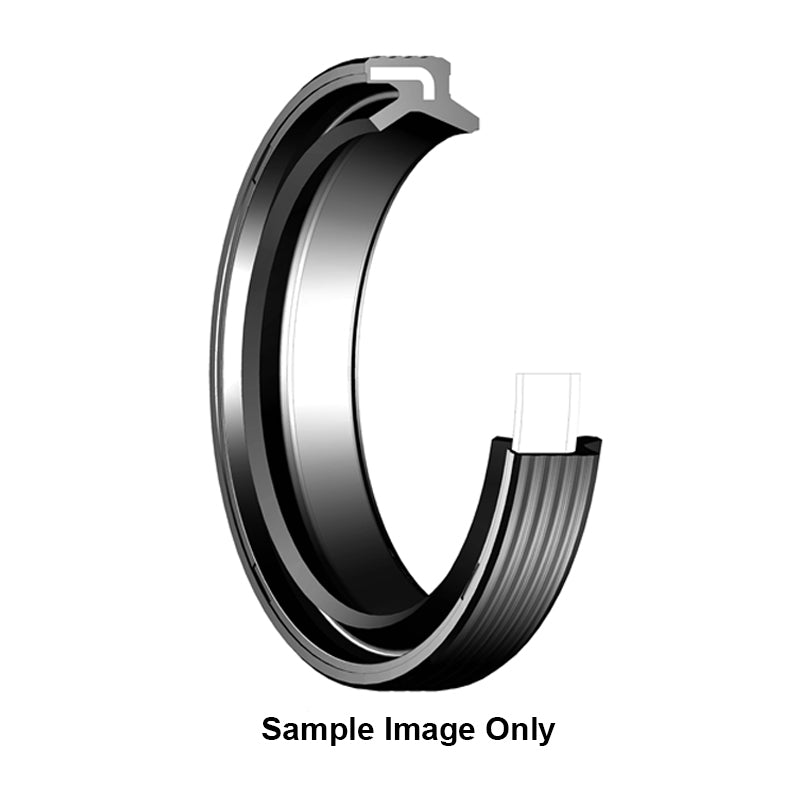

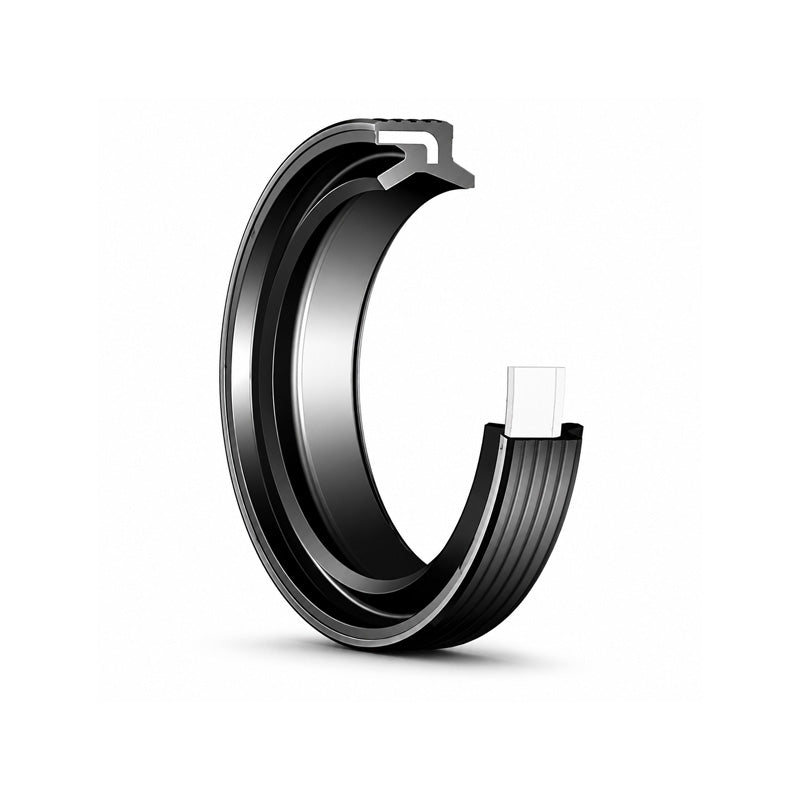

NAK 14x22x7mm WP13 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- €3.44 ex VAT
- Sale price
- €3,44
- Regular price
-
Not in stock
Quantity Price Breaks
10
€3.06
19
€2.89
29
€2.86
39
€2.82
49
€2.79
74
€2.75
99
€2.58
199
€2.55
249
€2.51
499
€2.48
999
€2.41
SKU:
14x22x7_WP13_NAK
NAK 14x22x7mm WP13 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- €3.44 ex VAT
- Sale price
- €3,44
- Regular price
-
Description
NAK WP13 Wiper Seals: WP13 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP13 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP13 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance

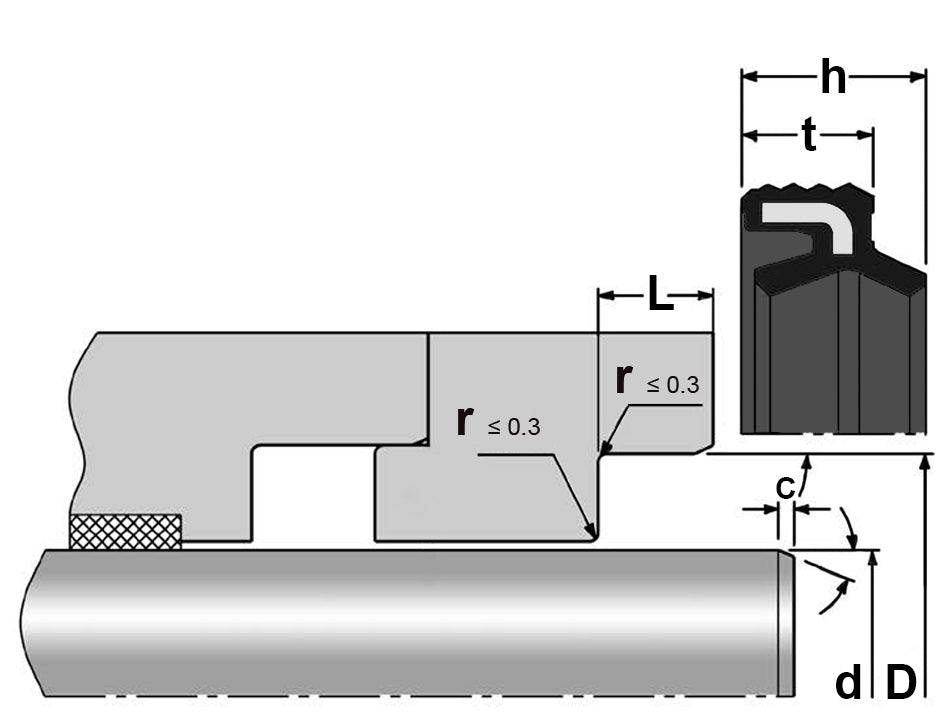

Technical
| d | = | 14mm |
| D | = | 22mm |
| L | = | 5mm |
| t | = | 5mm |
| h | = | 7mm |
| c | = | 2mm |
| Inside Diameter Tolerance | = | f8 |
| Outside Diameter Tolerance | = | H10 |
| Length Tolerance | = | 0.2mm |
| Running Speed v | = | 1 m/s |
| Temperature | = | -35 Deg C to +100 Deg C |
| Colour | = | Black |
