SKU: 160-2-SD-NO12-RENOLD
Renold SD 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €154.51 ex VAT
- Sale price
- €154,51
- Regular price
-
Not in stock
Quantity Price Breaks
2
€137.51
5
€129.79
10
€128.24
29
€126.70
49
€125.15
75
€123.61
100
€115.88
200
€114.34
250
€112.79
500
€111.25
1000
€108.16
SKU:
160-2-SD-NO12-RENOLD
Renold SD 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €154.51 ex VAT
- Sale price
- €154,51
- Regular price
-
Description

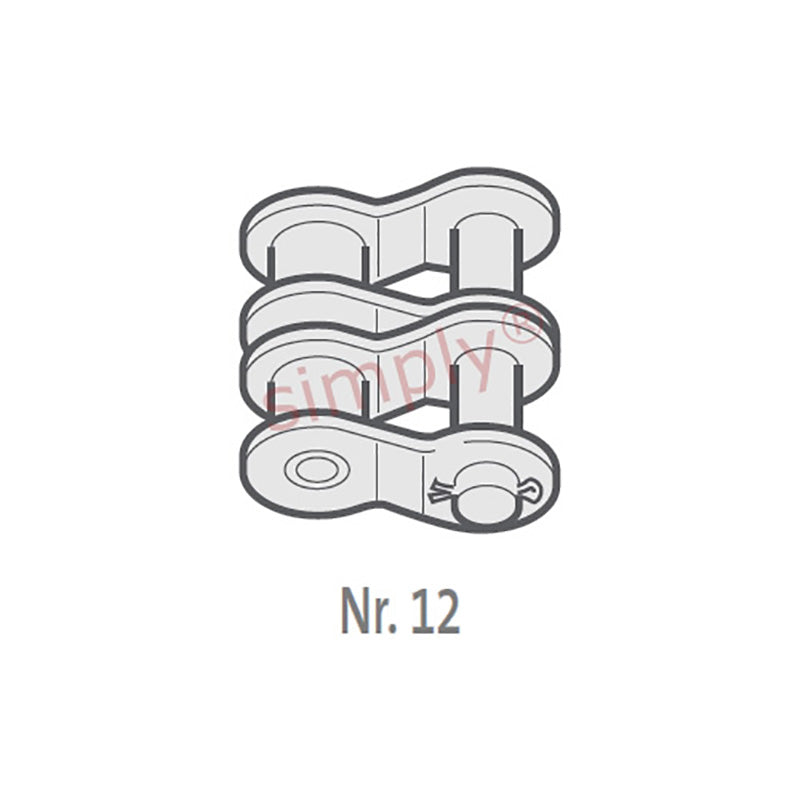

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48mm |
| Plate Width Inner max (E) | = | 6.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 14.27mm |
| Pin Length max (H2) | = | 122.9mm |
| Connecting Link Extension max (J) | = | 5.19999999999999mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 446000 N |
| Weight | = | 0.87kg/m |
