SKU: 16B-1-NO30-MB
Branded 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €8.09 ex VAT
- Sale price
- €8,09
- Regular price
-
In stock
Quantity Price Breaks
2
€7.20
5
€6.80
10
€6.71
29
€6.63
49
€6.55
75
€6.47
100
€6.07
200
€5.99
250
€5.91
500
€5.82
1000
€5.66
SKU:
16B-1-NO30-MB
Branded 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €8.09 ex VAT
- Sale price
- €8,09
- Regular price
-
Description

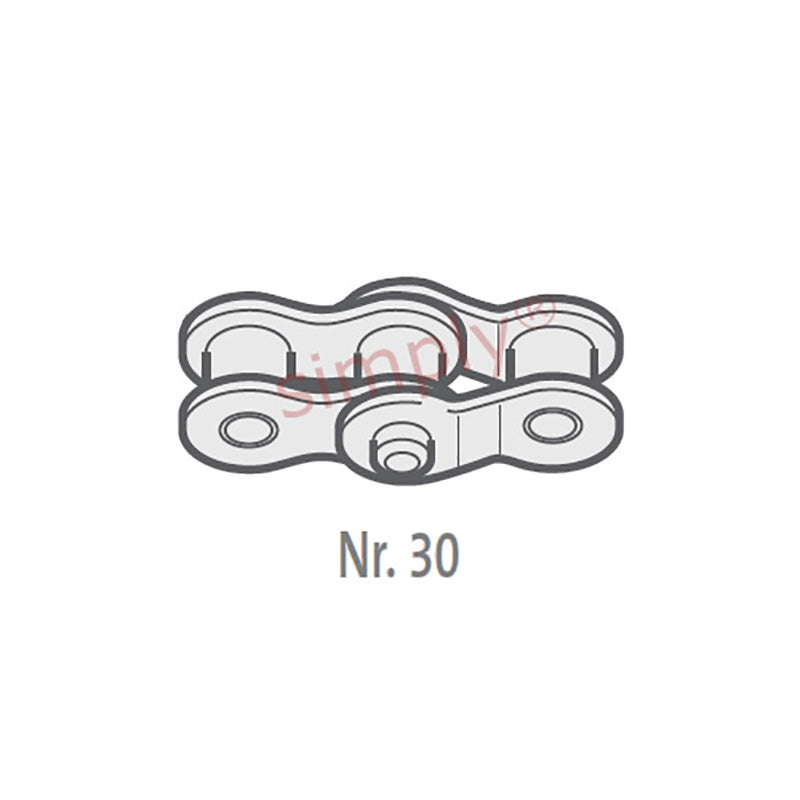

Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 36mm |
| Connecting Link Extension max (J) | = | 1.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.067kg/m |
