SKU: 16B-1-SYN-NO12-RENOLD
Renold Synergy 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €64.89 ex VAT
- Sale price
- €64,89
- Regular price
-
In stock
Quantity Price Breaks
2
€57.75
5
€54.51
10
€53.86
29
€53.21
49
€52.56
75
€51.91
100
€48.67
200
€48.02
250
€47.37
500
€46.72
1000
€45.42
SKU:
16B-1-SYN-NO12-RENOLD
Renold Synergy 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €64.89 ex VAT
- Sale price
- €64,89
- Regular price
-
Description

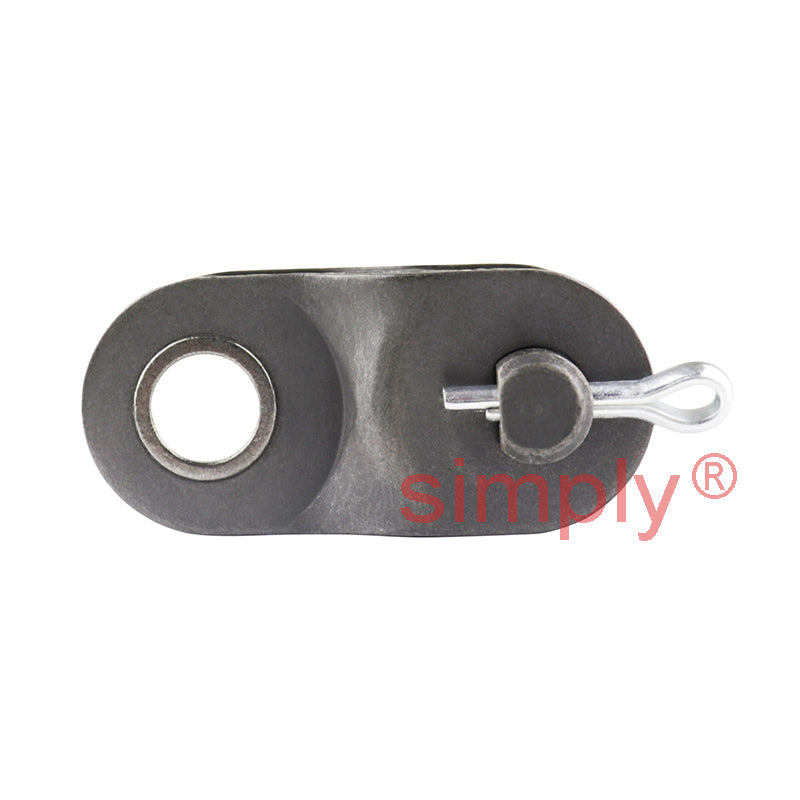

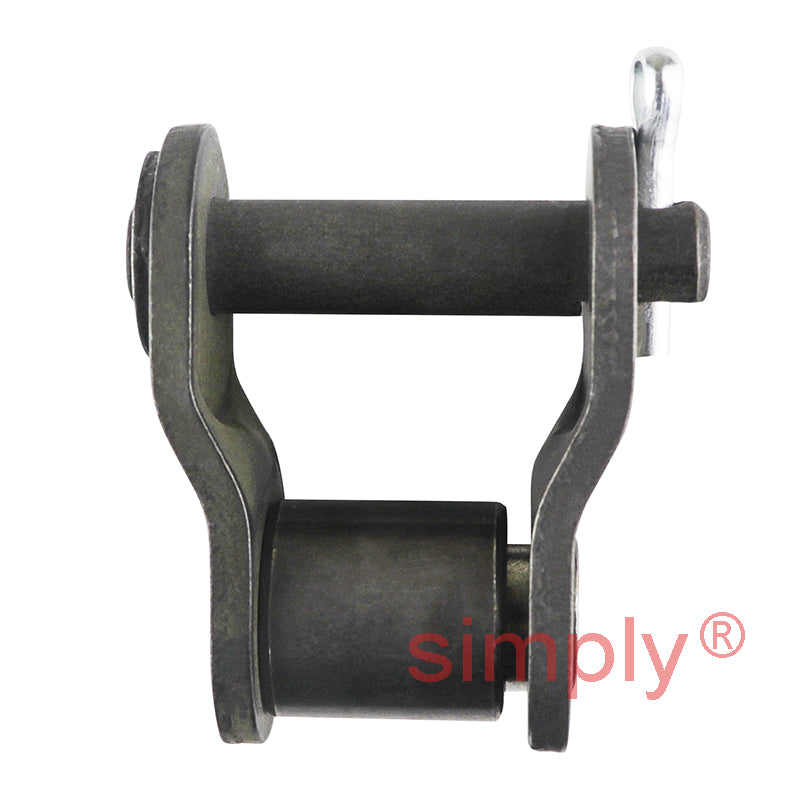

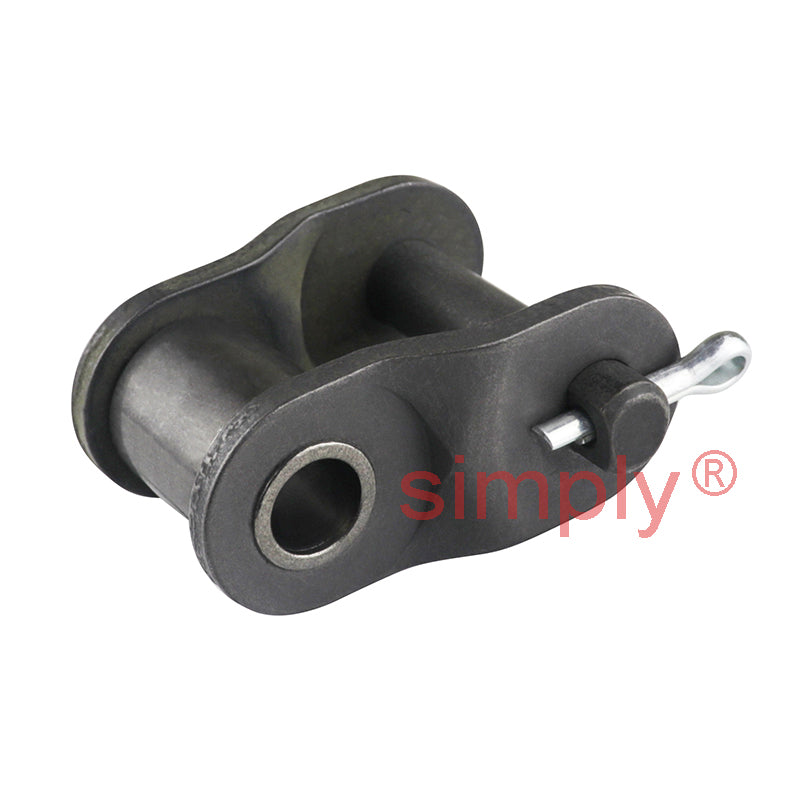

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 34.9mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.017kg/m |
