SKU: 16B-2-BB-NO12-RENOLD
Renold Blue Box 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €50.83 ex VAT
- Sale price
- €50,83
- Regular price
-
In stock
Quantity Price Breaks
2
€45.24
5
€42.70
10
€42.19
29
€41.68
49
€41.17
75
€40.66
100
€38.12
200
€37.61
250
€37.11
500
€36.60
1000
€35.58
SKU:
16B-2-BB-NO12-RENOLD
Renold Blue Box 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €50.83 ex VAT
- Sale price
- €50,83
- Regular price
-
Description

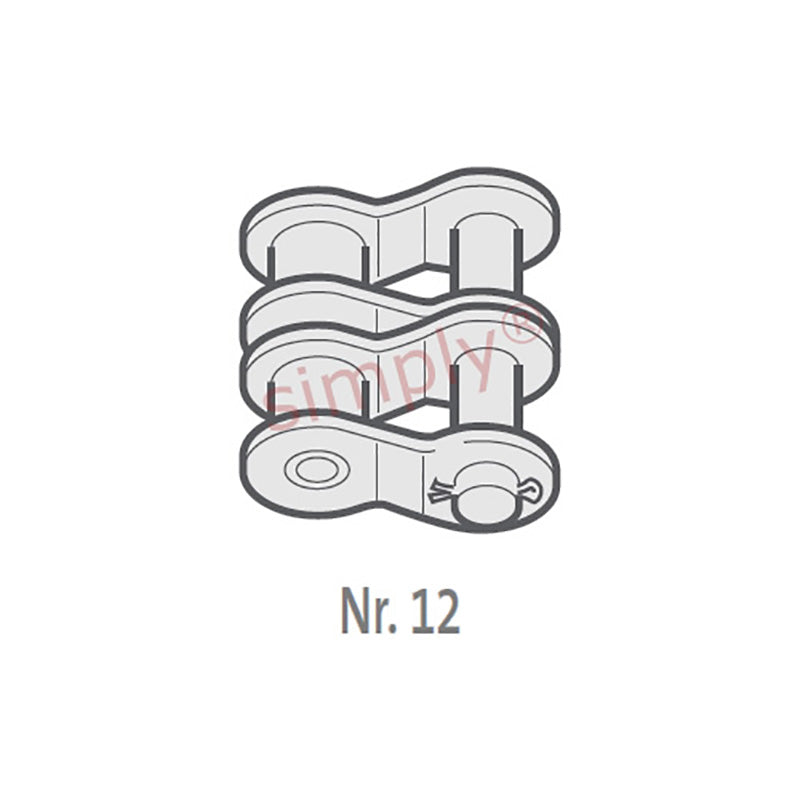

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 66.8mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
