SKU: 16B-3-SD-NO107-RENOLD
Renold SD 16B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
- Regular price
- €16.49 ex VAT
- Sale price
- €16,49
- Regular price
-
Not in stock
Quantity Price Breaks
2
€14.68
5
€13.85
10
€13.69
29
€13.52
49
€13.36
75
€13.19
100
€12.37
200
€12.20
250
€12.04
500
€11.87
1000
€11.54
SKU:
16B-3-SD-NO107-RENOLD
Renold SD 16B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
- Regular price
- €16.49 ex VAT
- Sale price
- €16,49
- Regular price
-
Description

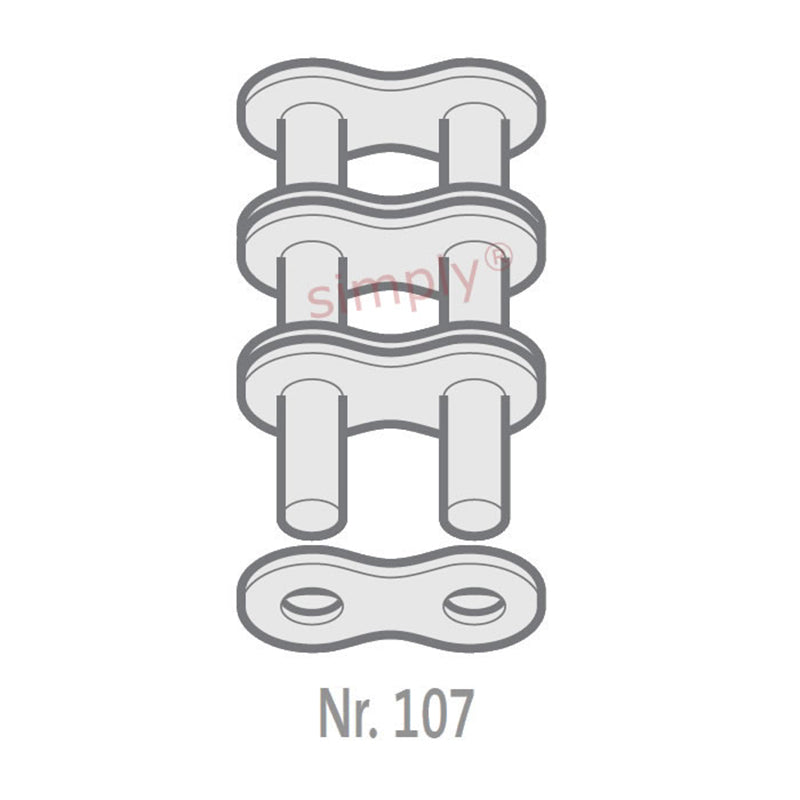

| Renold No. 107 European (BS) Triplex Connecting Link: For use with all sizes and types of chain where optimum security is desired. The link is supplied with bearing pins riveted into one outer plate. The other outer plate is an interference fit on the bearing pins, the ends of which should be riveted over after the plate is fitted. Press fit connecting links should only be used once; new links must be used to replace dismantled links. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 103.2mm |
| Connecting Link Extension max (J) | = | 3.60000000000001mm |
| ISO606 Tensile Strength min | = | 173000 N |
| Weight | = | 0.11kg/m |
