SKU: 20204-TVP-MB

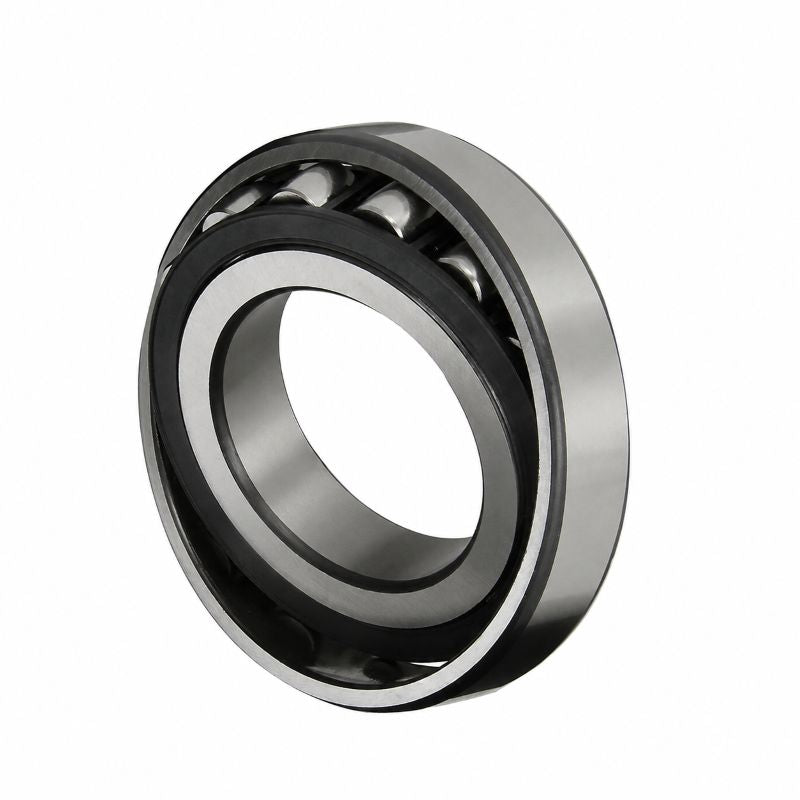

20204TVP Barrel Roller Bearing with Cylindrical Bore 20x47x14mm - Allow 2-3 Days
- Regular price
- €113.17 ex VAT
- Sale price
- €113,17
- Regular price
-
In stock
Quantity Price Breaks
3
€100.72
4
€95.06
9
€93.93
19
€92.80
29
€91.67
39
€90.54
49
€84.88
59
€83.75
249
€82.61
499
€81.48
999
€79.22
SKU:
20204-TVP-MB
20204TVP Barrel Roller Bearing with Cylindrical Bore 20x47x14mm - Allow 2-3 Days
- Regular price
- €113.17 ex VAT
- Sale price
- €113,17
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 20mm |
| D | = | 47mm |
| B | = | 14mm |
| r min | = | 1mm |
| D1 | = | 39mm |
| da min | = | 25.6mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
| Dynamic Load Cr | = | 20400 N |
| Static Load C0r | = | 19300 N |
| Fatigue limit load Cur | = | 1700 N |
| Limiting speed nG | = | 7500 rpm |
| Weight | = | 1.114 kg |
