SKU: 20205-K-TVP-C3-MB

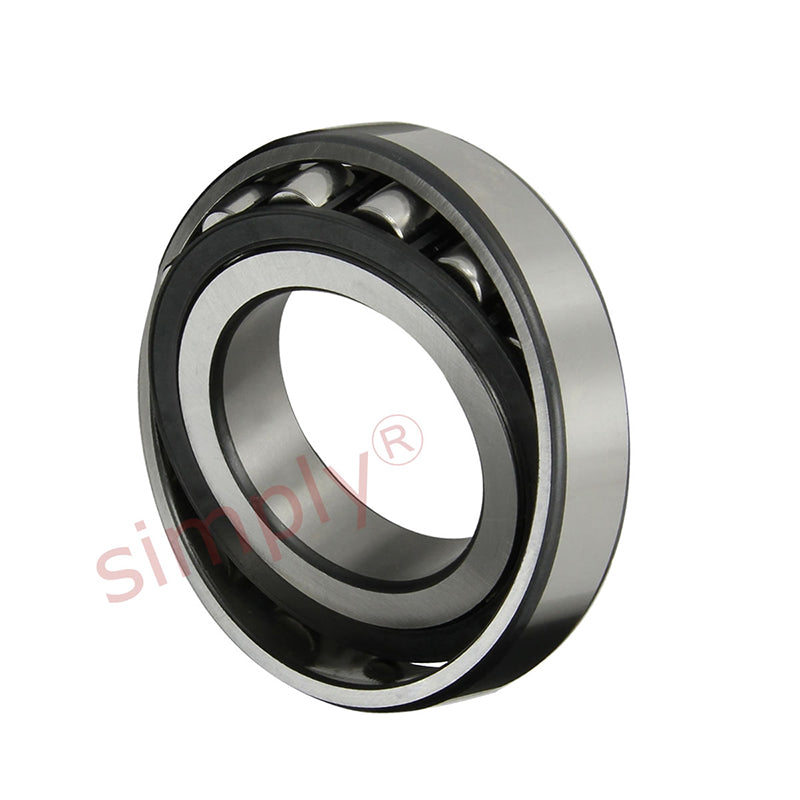

20205KTVPC3 Barrel Roller Bearing with Taper Bore 25x52x15mm - Allow 2-3 Days
- Regular price
- €104.58 ex VAT
- Sale price
- €104,58
- Regular price
-
Not in stock
Quantity Price Breaks
3
€93.08
4
€87.85
9
€86.80
19
€85.76
29
€84.71
39
€83.66
49
€78.44
59
€77.39
249
€76.34
499
€75.30
999
€73.21
SKU:
20205-K-TVP-C3-MB
20205KTVPC3 Barrel Roller Bearing with Taper Bore 25x52x15mm - Allow 2-3 Days
- Regular price
- €104.58 ex VAT
- Sale price
- €104,58
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 25mm |
| D | = | 52mm |
| B | = | 15mm |
| r min | = | 1mm |
| D1 | = | 43.9mm |
| da min | = | 30.6mm |
| Da max | = | 46.4mm |
| ra max | = | 1mm |
| Dynamic load Cr | = | 24000 N |
| Static load C0r | = | 25000 N |
| Fatigue limit load Cur | = | 2190 N |
| Limiting speed nG | = | 6700 rpm |
| Weight | = | 0.132 kg |
