SKU: 20209-TVP-MB

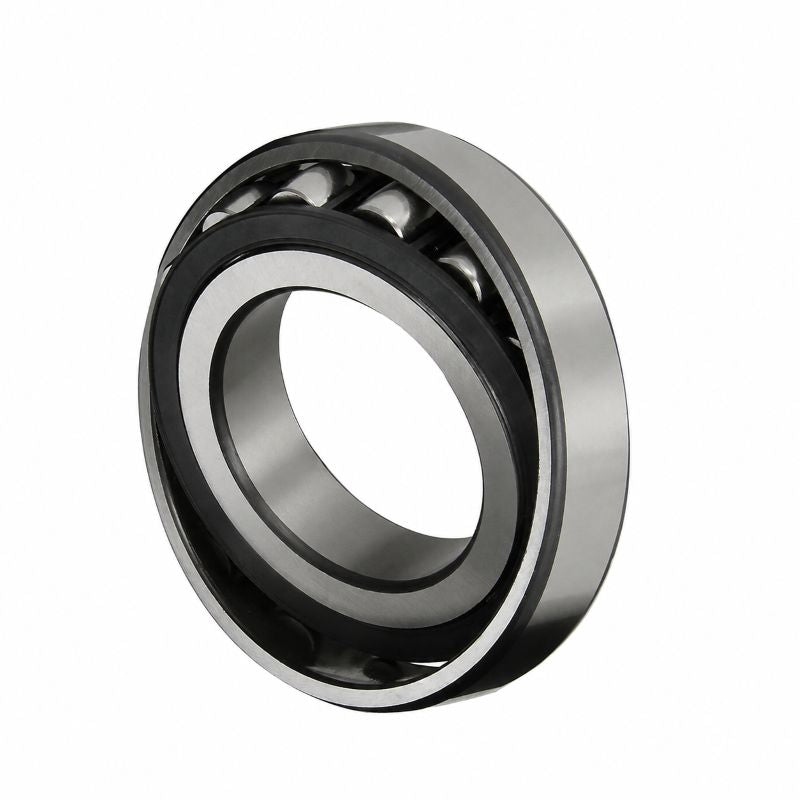

20209TVP Barrel Roller Bearing with Cylindrical Bore 45x85x19mm - Allow 2-3 Days
- Regular price
- €156.55 ex VAT
- Sale price
- €156,55
- Regular price
-
Not in stock
Quantity Price Breaks
3
€139.33
4
€131.50
9
€129.94
19
€128.37
29
€126.81
39
€125.24
49
€117.41
59
€115.85
249
€114.28
499
€112.72
999
€109.59
SKU:
20209-TVP-MB
20209TVP Barrel Roller Bearing with Cylindrical Bore 45x85x19mm - Allow 2-3 Days
- Regular price
- €156.55 ex VAT
- Sale price
- €156,55
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 45mm |
| D | = | 85mm |
| B | = | 19mm |
| r min | = | 1.1mm |
| D1 | = | 74.6mm |
| da min | = | 52mm |
| Da max | = | 78mm |
| ra max | = | 1mm |
| Dynamic Load Cr | = | 52000 N |
| Static Load C0r | = | 57000 N |
| Fatigue limit load Cur | = | 5900 N |
| Limiting speed nG | = | 4000 rpm |
| Weight | = | 0.441 kg |
