SKU: 20211-TVP-C3-MB

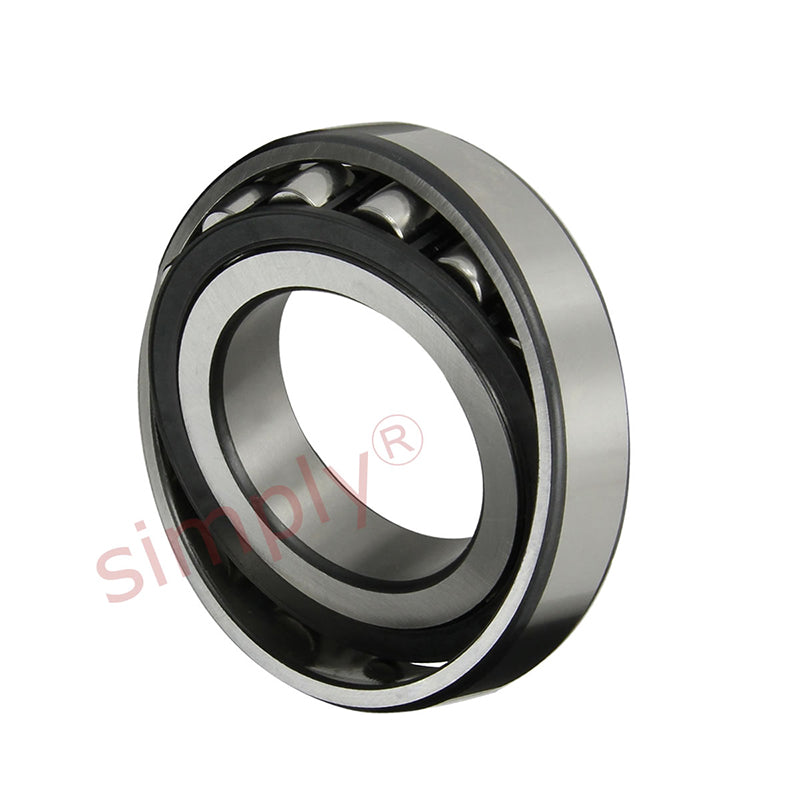

20211TVPC3 Barrel Roller Bearing with Cylindrical Bore 55x100x21mm - Allow 2-3 Days
- Regular price
- €194.99 ex VAT
- Sale price
- €194,99
- Regular price
-
Not in stock
Quantity Price Breaks
3
€173.54
4
€163.79
9
€161.84
19
€159.89
29
€157.94
39
€155.99
49
€146.24
59
€144.29
249
€142.34
499
€140.39
999
€136.49
SKU:
20211-TVP-C3-MB
20211TVPC3 Barrel Roller Bearing with Cylindrical Bore 55x100x21mm - Allow 2-3 Days
- Regular price
- €194.99 ex VAT
- Sale price
- €194,99
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 55mm |
| D | = | 100mm |
| B | = | 21mm |
| r min | = | 1.5mm |
| D1 | = | 89.2mm |
| da min | = | 64mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| Dynamic Load Cr | = | 73500 N |
| Static Load C0r | = | 85000 N |
| Fatigue limit load Cur | = | 8700 N |
| Limiting speed nG | = | 3400 rpm |
| Weight | = | 0.653 kg |
