SKU: 20212-K-TVP-C3-MB
20212KTVPC3 Barrel Roller Bearing with Taper Bore 60x110x22mm - Allow 2-3 Days
- Regular price
- €197.14 ex VAT
- Sale price
- €197,14
- Regular price
-
Not in stock
Quantity Price Breaks
3
€175.45
4
€165.60
9
€163.63
19
€161.65
29
€159.68
39
€157.71
49
€147.86
59
€145.88
249
€143.91
499
€141.94
999
€138.00
SKU:
20212-K-TVP-C3-MB
20212KTVPC3 Barrel Roller Bearing with Taper Bore 60x110x22mm - Allow 2-3 Days
- Regular price
- €197.14 ex VAT
- Sale price
- €197,14
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |

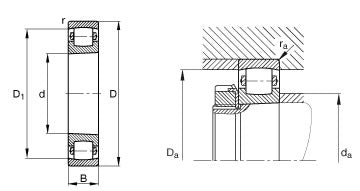

Technical
| d | = | 60mm |
| D | = | 110mm |
| B | = | 22mm |
| r min | = | 1.5mm |
| D1 | = | 97.8mm |
| da min | = | 69mm |
| Da max | = | 101mm |
| ra max | = | 1.5mm |
| Dynamic load Cr | = | 85000 N |
| Static load C0r | = | 100000 N |
| Fatigue limit load Cur | = | 10600 N |
| Limiting speed nG | = | 3200 rpm |
| Weight | = | 0.822 kg |
