SKU: 20217-MB-MB

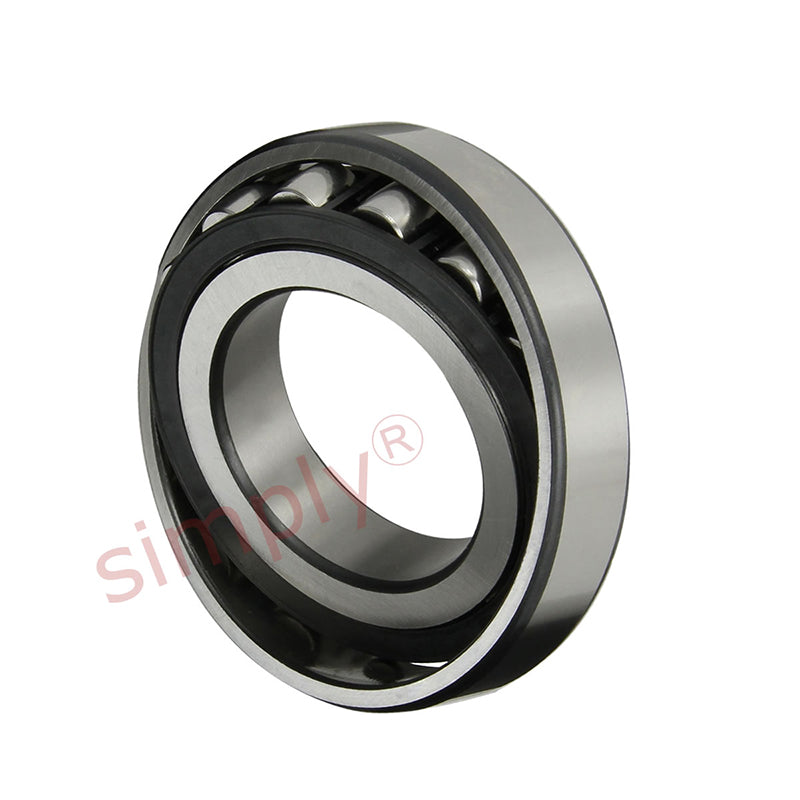

20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
- Regular price
- €352.19 ex VAT
- Sale price
- €352,19
- Regular price
-
Not in stock
Quantity Price Breaks
3
€313.45
4
€295.84
9
€292.32
19
€288.80
29
€285.27
39
€281.75
49
€264.14
59
€260.62
249
€257.10
499
€253.58
999
€246.53
SKU:
20217-MB-MB
20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
- Regular price
- €352.19 ex VAT
- Sale price
- €352,19
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 85mm |
| D | = | 150mm |
| B | = | 28mm |
| r min | = | 2mm |
| D1 | = | 133.9mm |
| da min | = | 96mm |
| Da max | = | 139mm |
| ra max | = | 2mm |
| Dynamic Load Cr | = | 156000 N |
| Static Load C0r | = | 200000 N |
| Fatigue limit load Cur | = | 20400 N |
| Limiting speed nG | = | 2400 rpm |
| Weight | = | 2.22 kg |
