SKU: 20224-K-MB-C3-MB

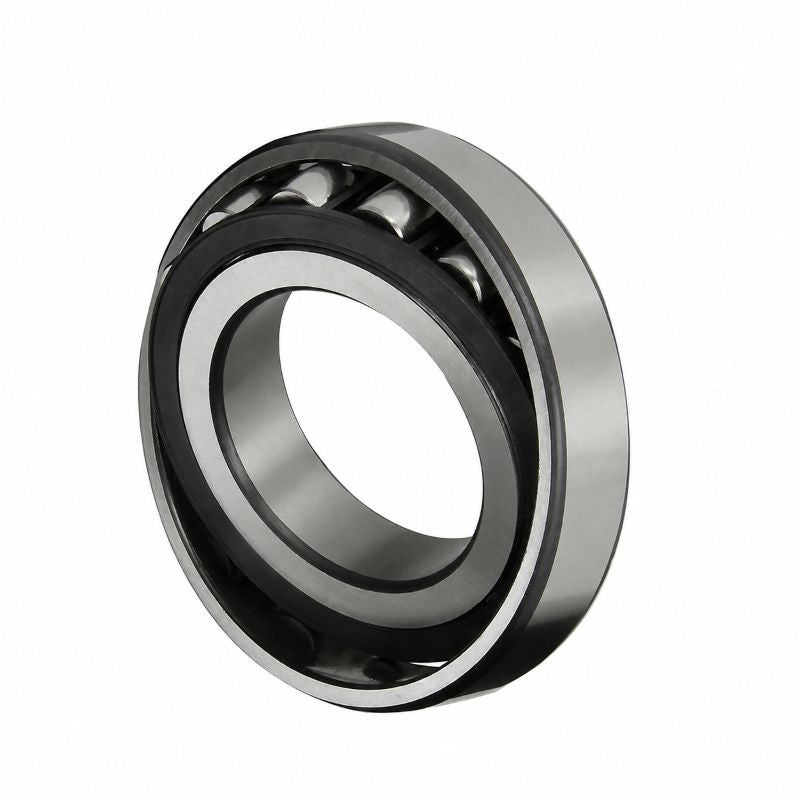

20224KMBC3 Barrel Roller Bearing with Taper Bore 120x215x40mm - Allow 2-3 Days
- Regular price
- €807.44 ex VAT
- Sale price
- €807,44
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€718.62
4
€678.25
9
€670.18
19
€662.10
29
€654.03
39
€645.95
49
€605.58
59
€597.51
249
€589.43
499
€581.36
999
€565.21
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 120mm |
| D | = | 215mm |
| B | = | 40mm |
| r min | = | 2.1mm |
| D1 | = | 191.1mm |
| da min | = | 132mm |
| Da max | = | 203mm |
| ra max | = | 2.1mm |
| Dynamic load Cr | = | 305000 N |
| Static load C0r | = | 415000 N |
| Fatigue limit load Cur | = | 38000 N |
| Limiting speed nG | = | 1600 rpm |
| Weight | = | 6.51 kg |
