SKU: 20230-K-MB-C3-MB

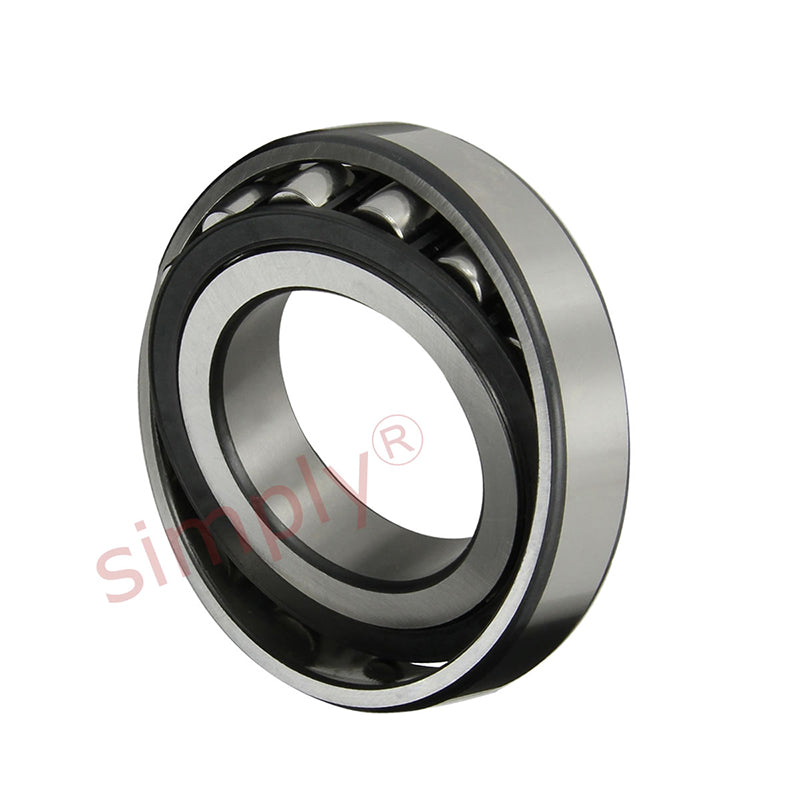

20230KMBC3 Barrel Roller Bearing with Taper Bore 150x270x45mm - Allow 2-3 Days
- Regular price
- €1.320.69 ex VAT
- Sale price
- €1.320,69
- Regular price
-
Not in stock
Quantity Price Breaks
3
€1.175.41
4
€1.109.38
9
€1.096.17
19
€1.082.97
29
€1.069.76
39
€1.056.55
49
€990.52
59
€977.31
249
€964.10
499
€950.90
999
€924.48
SKU:
20230-K-MB-C3-MB
20230KMBC3 Barrel Roller Bearing with Taper Bore 150x270x45mm - Allow 2-3 Days
- Regular price
- €1.320.69 ex VAT
- Sale price
- €1.320,69
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 150mm |
| D | = | 270mm |
| B | = | 45mm |
| r min | = | 3mm |
| D1 | = | 238.6mm |
| da min | = | 164mm |
| Da max | = | 256mm |
| ra max | = | 2.5mm |
| Dynamic load Cr | = | 430000 N |
| Static load C0r | = | 610000 N |
| Fatigue limit load Cur | = | 55000 N |
| Limiting speed nG | = | 1300 rpm |
| Weight | = | 11.6 kg |
