SKU: 20240-MB-MB
20240MB Barrel Roller Bearing with Cylindrical Bore 200x360x58mm - Allow 2-3 Days
- Regular price
- €2.896.91 ex VAT
- Sale price
- €2.896,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€2.578.25
4
€2.433.40
9
€2.404.44
19
€2.375.47
29
€2.346.50
39
€2.317.53
49
€2.172.68
59
€2.143.71
249
€2.114.74
499
€2.085.78
999
€2.027.84
SKU:
20240-MB-MB
20240MB Barrel Roller Bearing with Cylindrical Bore 200x360x58mm - Allow 2-3 Days
- Regular price
- €2.896.91 ex VAT
- Sale price
- €2.896,91
- Regular price
-
Description
|

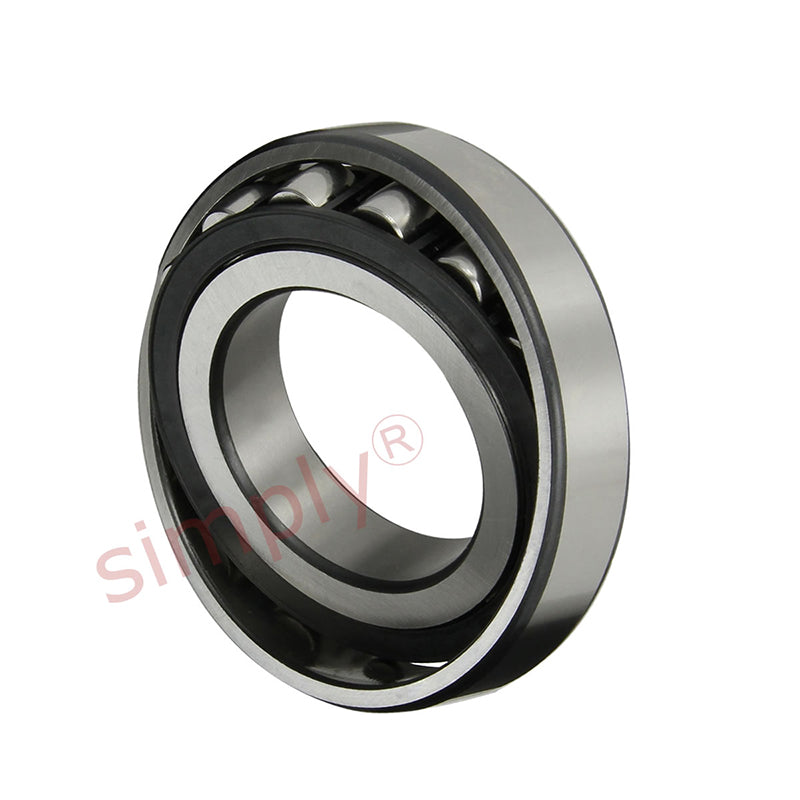

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 200mm |
| D | = | 360mm |
| B | = | 58mm |
| r min | = | 4mm |
| D1 | = | 319mm |
| da min | = | 217mm |
| Da max | = | 343mm |
| ra max | = | 3mm |
| Dynamic Load Cr | = | 735000 N |
| Static Load C0r | = | 1080000 N |
| Fatigue limit load Cur | = | 91000 N |
| Limiting speed nG | = | 950 rpm |
| Weight | = | 26.7 kg |
