SKU: 20308-TVP-MB

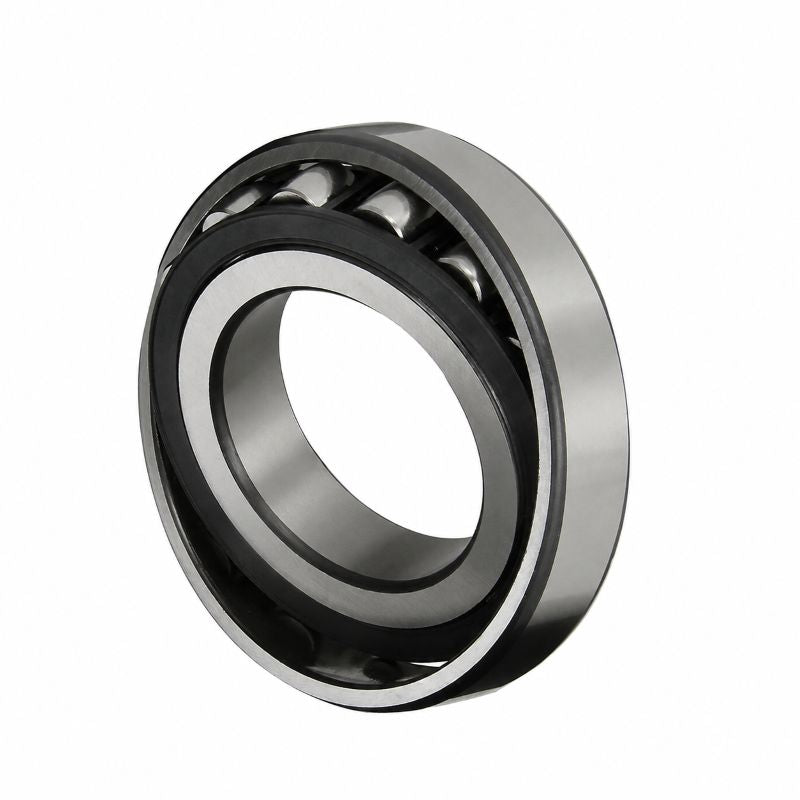

20308TVP Barrel Roller Bearing with Cylindrical Bore 40x90x23mm - Allow 2-3 Days
- Regular price
- €178.45 ex VAT
- Sale price
- €178,45
- Regular price
-
Not in stock
Quantity Price Breaks
3
€158.82
4
€149.90
9
€148.11
19
€146.33
29
€144.54
39
€142.76
49
€133.84
59
€132.05
249
€130.27
499
€128.48
999
€124.92
SKU:
20308-TVP-MB
20308TVP Barrel Roller Bearing with Cylindrical Bore 40x90x23mm - Allow 2-3 Days
- Regular price
- €178.45 ex VAT
- Sale price
- €178,45
- Regular price
-
Description
|

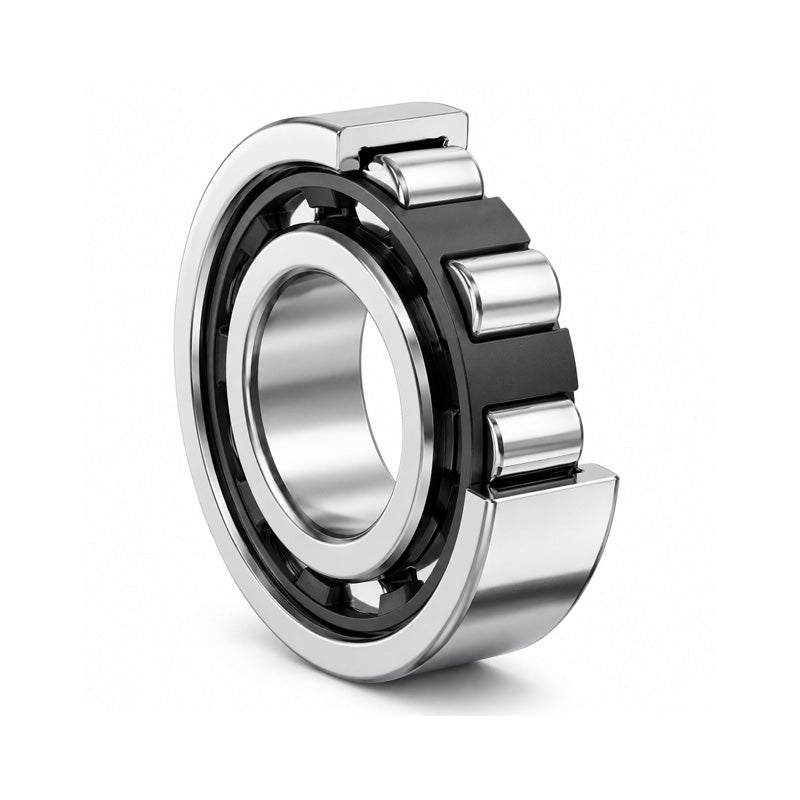

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 23mm |
| r min | = | 1.5mm |
| D1 | = | 76.8mm |
| da min | = | 49mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| Dynamic Load Cr | = | 76500 N |
| Static Load C0r | = | 81500 N |
| Fatigue limit load Cur | = | 7200 N |
| Limiting speed nG | = | 4000 rpm |
| Weight | = | 0.671 kg |
