SKU: 20309-TVP-C3-MB

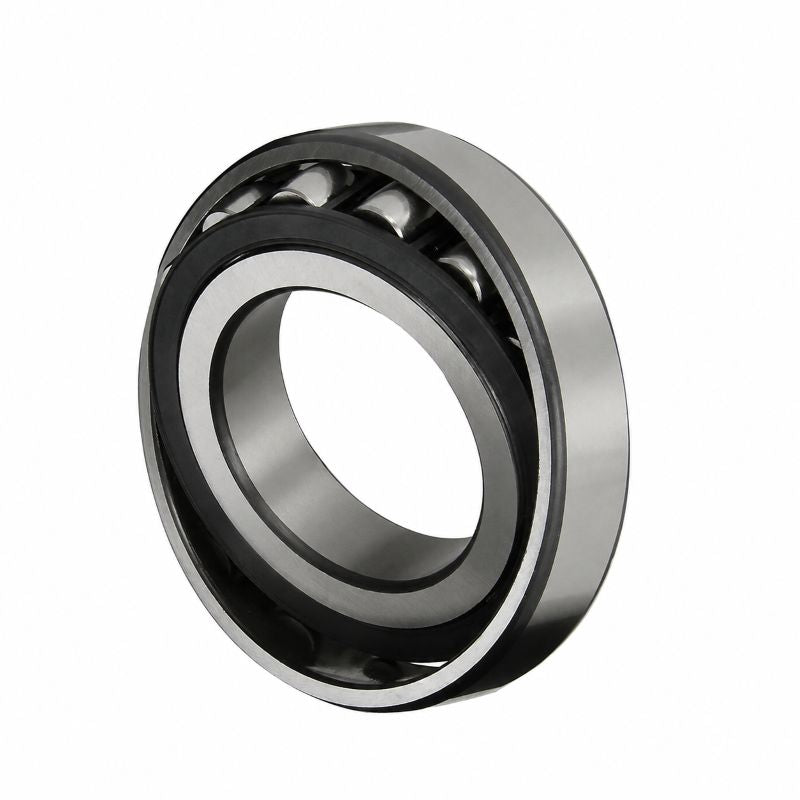

20309TVPC3 Barrel Roller Bearing with Cylindrical Bore 45x100x25mm - Allow 2-3 Days
- Regular price
- €202.29 ex VAT
- Sale price
- €202,29
- Regular price
-
Not in stock
Quantity Price Breaks
3
€180.04
4
€169.92
9
€167.90
19
€165.88
29
€163.85
39
€161.83
49
€151.72
59
€149.69
249
€147.67
499
€145.65
999
€141.60
SKU:
20309-TVP-C3-MB
20309TVPC3 Barrel Roller Bearing with Cylindrical Bore 45x100x25mm - Allow 2-3 Days
- Regular price
- €202.29 ex VAT
- Sale price
- €202,29
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 45mm |
| D | = | 100mm |
| B | = | 25mm |
| r min | = | 1.5mm |
| D1 | = | 85.2mm |
| da min | = | 54mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| Dynamic Load Cr | = | 86500 N |
| Static Load C0r | = | 95000 N |
| Fatigue limit load Cur | = | 8500 N |
| Limiting speed nG | = | 3600 rpm |
| Weight | = | 0.914 kg |
