SKU: 20311-TVP-C3-MB
20311TVPC3 Barrel Roller Bearing with Cylindrical Bore 55x120x29mm - Allow 2-3 Days
- Regular price
- €258.13 ex VAT
- Sale price
- €258,13
- Regular price
-
Not in stock
Quantity Price Breaks
3
€229.74
4
€216.83
9
€214.25
19
€211.67
29
€209.09
39
€206.50
49
€193.60
59
€191.02
249
€188.43
499
€185.85
999
€180.69
SKU:
20311-TVP-C3-MB
20311TVPC3 Barrel Roller Bearing with Cylindrical Bore 55x120x29mm - Allow 2-3 Days
- Regular price
- €258.13 ex VAT
- Sale price
- €258,13
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |

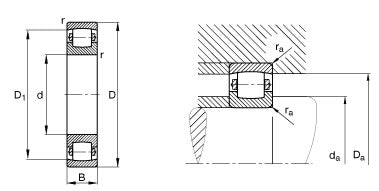

Technical
| d | = | 55mm |
| D | = | 120mm |
| B | = | 29mm |
| r min | = | 2mm |
| D1 | = | 101.7mm |
| da min | = | 66mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| Dynamic Load Cr | = | 120000 N |
| Static Load C0r | = | 137000 N |
| Fatigue limit load Cur | = | 12400 N |
| Limiting speed nG | = | 3000 rpm |
| Weight | = | 1.53 kg |
