SKU: 20316-MB-MB

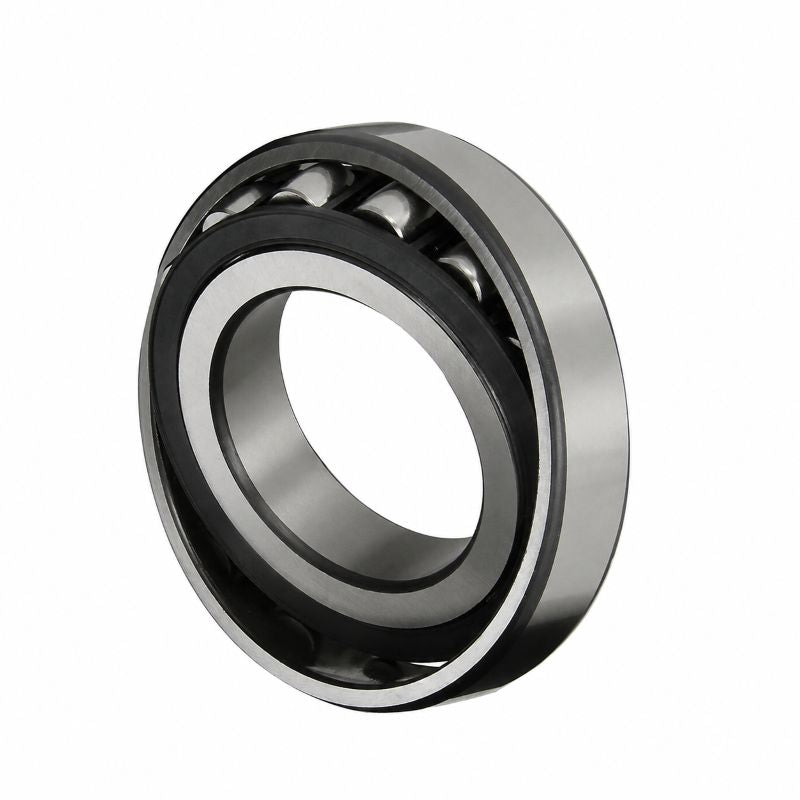

20316MB Barrel Roller Bearing with Cylindrical Bore 80x170x39mm - Allow 2-3 Days
- Regular price
- €514.10 ex VAT
- Sale price
- €514,10
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€457.55
4
€431.84
9
€426.70
19
€421.56
29
€416.42
39
€411.28
49
€385.58
59
€380.43
249
€375.29
499
€370.15
999
€359.87
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 80mm |
| D | = | 170mm |
| B | = | 39mm |
| r min | = | 2.1mm |
| D1 | = | 147.5mm |
| da min | = | 92mm |
| Da max | = | 158mm |
| ra max | = | 2.1mm |
| Dynamic Load Cr | = | 245000 N |
| Static Load C0r | = | 285000 N |
| Fatigue limit load Cur | = | 25500 N |
| Limiting speed nG | = | 2000 rpm |
| Weight | = | 4.58 kg |
