SKU: 20318-MB-MB

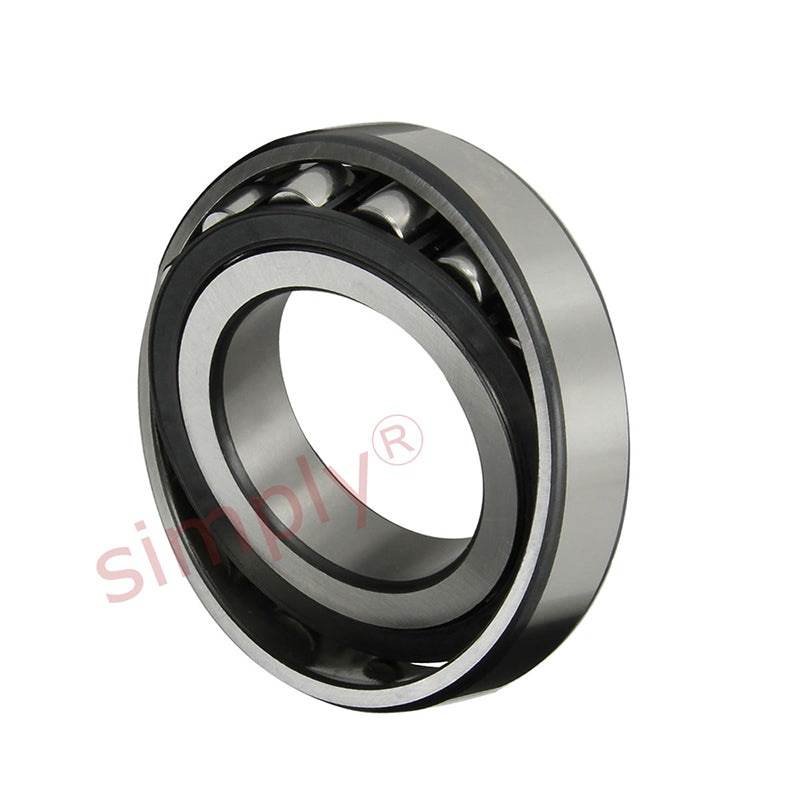

20318MB Barrel Roller Bearing with Cylindrical Bore 90x190x43mm - Allow 2-3 Days
- Regular price
- €672.58 ex VAT
- Sale price
- €672,58
- Regular price
-
Not in stock
Quantity Price Breaks
3
€598.60
4
€564.97
9
€558.24
19
€551.52
29
€544.79
39
€538.06
49
€504.44
59
€497.71
249
€490.98
499
€484.26
999
€470.81
SKU:
20318-MB-MB
20318MB Barrel Roller Bearing with Cylindrical Bore 90x190x43mm - Allow 2-3 Days
- Regular price
- €672.58 ex VAT
- Sale price
- €672,58
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 90mm |
| D | = | 190mm |
| B | = | 43mm |
| r min | = | 3mm |
| D1 | = | 165.1mm |
| da min | = | 104mm |
| Da max | = | 176mm |
| ra max | = | 2.5mm |
| Dynamic Load Cr | = | 300000 N |
| Static Load C0r | = | 360000 N |
| Fatigue limit load Cur | = | 30500 N |
| Limiting speed nG | = | 1900 rpm |
| Weight | = | 6.25 kg |
