SKU: 20319-MB-MB

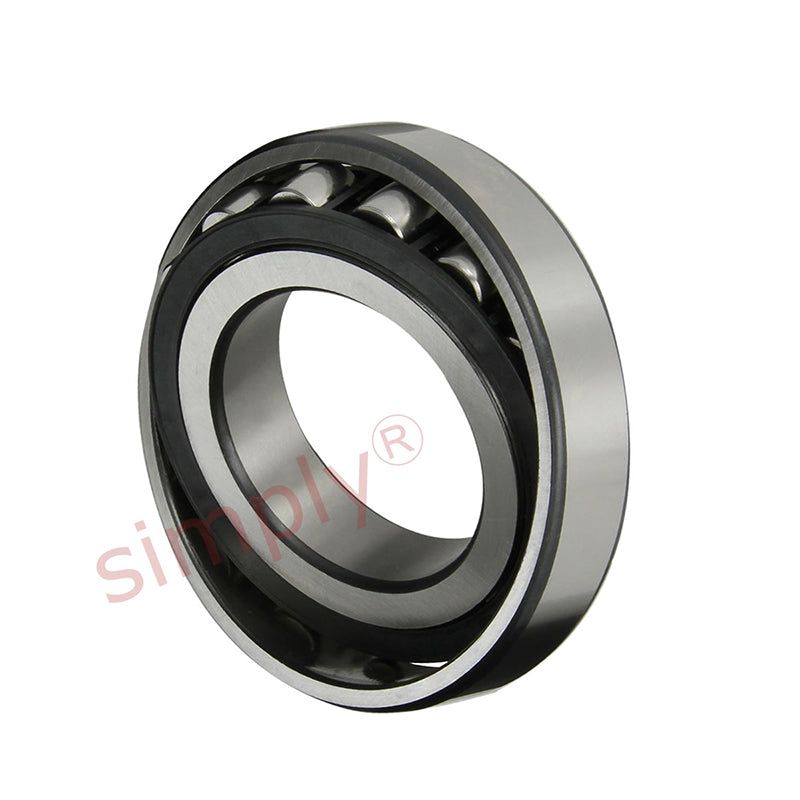

20319MB Barrel Roller Bearing with Cylindrical Bore 95x200x45mm - Allow 2-3 Days
- Regular price
- €799.29 ex VAT
- Sale price
- €799,29
- Regular price
-
Not in stock
Quantity Price Breaks
3
€711.37
4
€671.40
9
€663.41
19
€655.42
29
€647.42
39
€639.43
49
€599.47
59
€591.47
249
€583.48
499
€575.49
999
€559.50
SKU:
20319-MB-MB
20319MB Barrel Roller Bearing with Cylindrical Bore 95x200x45mm - Allow 2-3 Days
- Regular price
- €799.29 ex VAT
- Sale price
- €799,29
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d | = | 95mm |
| D | = | 200mm |
| B | = | 45mm |
| r min | = | 3mm |
| D1 | = | 174.5mm |
| da min | = | 109mm |
| Da max | = | 186mm |
| ra max | = | 2.5mm |
| Dynamic Load Cr | = | 335000 N |
| Static Load C0r | = | 400000 N |
| Fatigue limit load Cur | = | 34000 N |
| Limiting speed nG | = | 1800 rpm |
| Weight | = | 7.29 kg |
