SKU: 25-1-NO30-MB
Branded 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
- Regular price
- €5.93 ex VAT
- Sale price
- €5,93
- Regular price
-
In stock
Quantity Price Breaks
2
€5.28
5
€4.98
10
€4.92
29
€4.86
49
€4.80
75
€4.74
100
€4.45
200
€4.39
250
€4.33
500
€4.27
1000
€4.15
SKU:
25-1-NO30-MB
Branded 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
- Regular price
- €5.93 ex VAT
- Sale price
- €5,93
- Regular price
-
Description

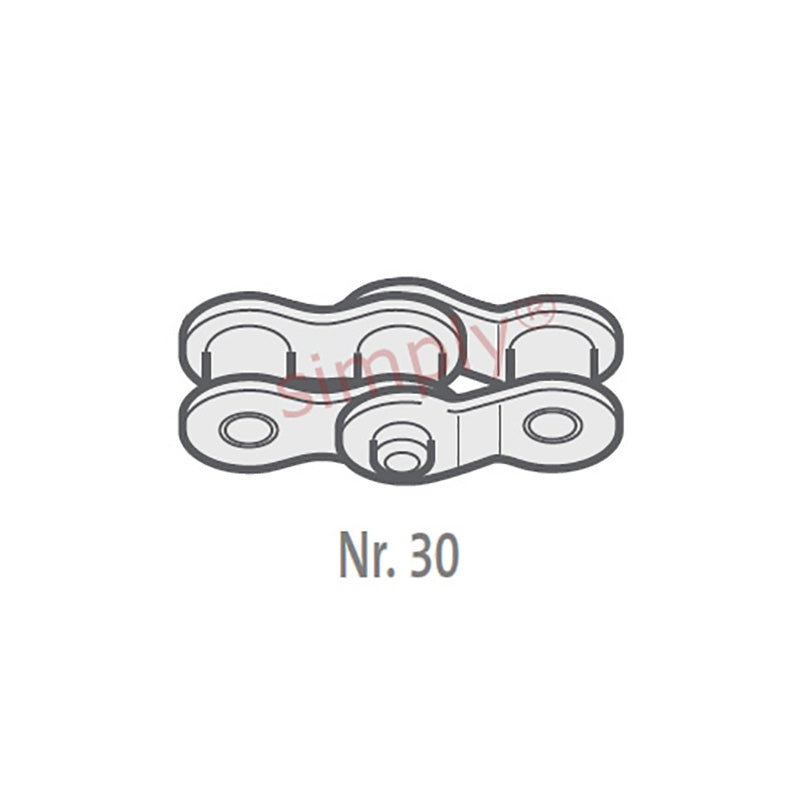

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.25 inch |
| Pitch (A) | = | 6.35mm |
| Inside Width min (B) | = | 3.18mm |
| Roller Diameter max (C) | = | 3.3mm |
| Plate Height max (D) | = | 5.9mm |
| Plate Width Inner max (E) | = | 0.75mm |
| Plate Width Outer max (F) | = | 0.75mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H1) | = | 7.8mm |
| Connecting Link Extension max (J) | = | 0.649999999999999mm |
| ISO606 Tensile Strength min | = | 3500 N |
| Weight | = | 0.15kg/m |
