SKU: 31.5x39.5x6.5_WP1_NAK

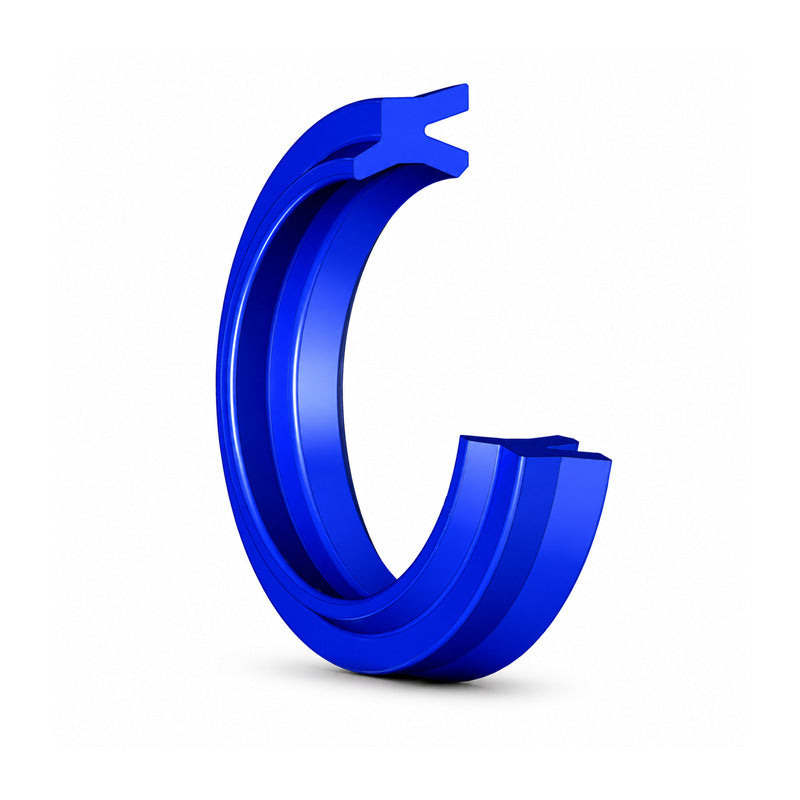

NAK 31.5x39.5x6.5mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
- Regular price
- €3.95 ex VAT
- Sale price
- €3,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€3.52
19
€3.32
29
€3.28
39
€3.24
49
€3.20
74
€3.16
99
€2.96
199
€2.92
249
€2.88
499
€2.84
999
€2.77
SKU:
31.5x39.5x6.5_WP1_NAK
NAK 31.5x39.5x6.5mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
- Regular price
- €3.95 ex VAT
- Sale price
- €3,95
- Regular price
-
Description
NAK WP1 Wiper Seals: WP1 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP1 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP1 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance

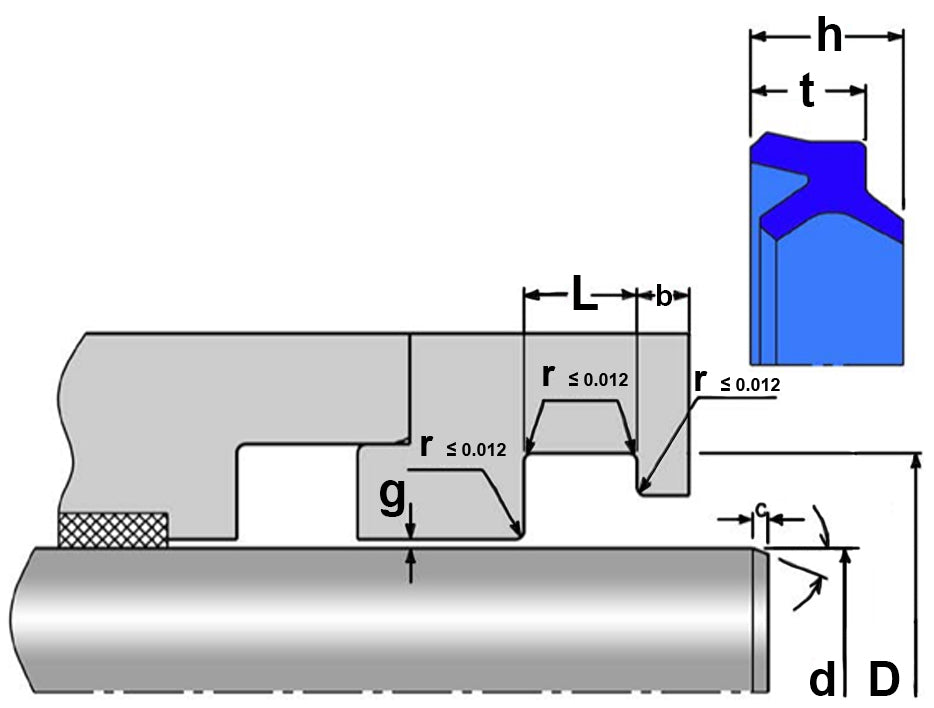

Technical
| d | = | 31.5mm |
| D | = | 39.5mm |
| L | = | 5.5mm |
| b | = | 2mm |
| t | = | 5mm |
| h | = | 6.5mm |
| c | = | 2mm |
| Inside Diameter Tolerance | = | f8 |
| Outside Diameter Tolerance | = | 0.008mm |
| Length Tolerance | = | 0.2mm |
| Running Speed v | = | 1 m/s |
| Temperature | = | -40 Deg C to +100 Deg C |
| Colour | = | Blue |
