SKU: 32006JRRS2-KOY

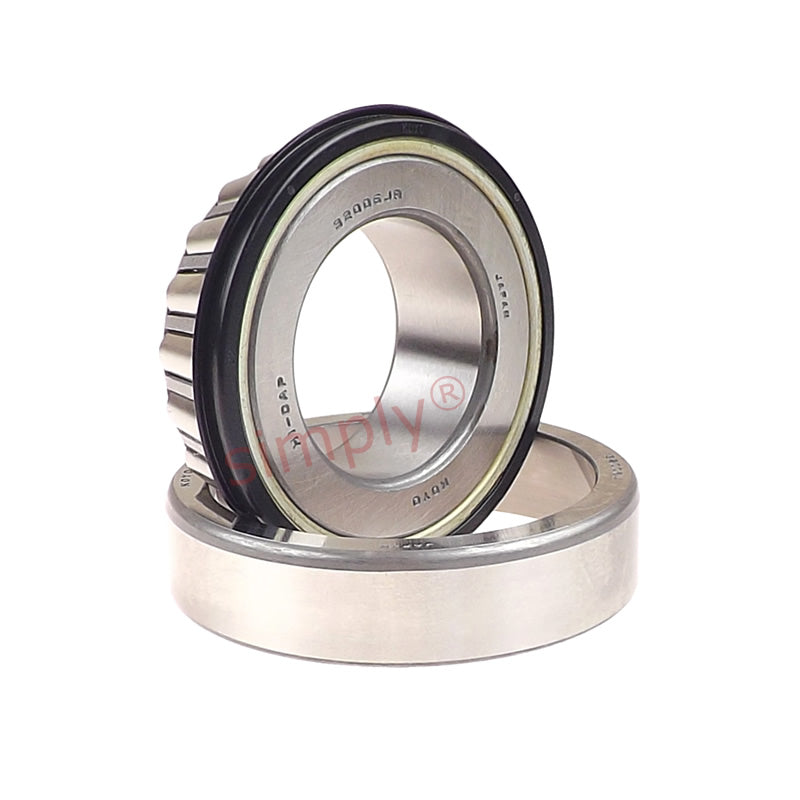

KOYO 32006JRRS2 Narrow Section Steering Head Set Taper Roller Bearing 30x55x17mm SEALED MODEL
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
In stock
Quantity Price Breaks
10
€19.34
20
€18.25
30
€18.04
40
€17.82
50
€17.60
75
€17.38
100
€16.30
200
€16.08
250
€15.86
500
€15.65
1000
€15.21
SKU:
32006JRRS2-KOY
KOYO 32006JRRS2 Narrow Section Steering Head Set Taper Roller Bearing 30x55x17mm SEALED MODEL
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Description
|
Narrow Section Taper Roller Bearings: Typically used in motorcycle steering heads these bearings are manufactured with large bore to outside diameter ratios and low overall height to permit use in space restricted applications, typically in motorcycle and automotive installations Benefits: Narrow section, low height, large bore to diameter ratio |
Technical
| d | = | 30mm |
| D | = | 55mm |
| T | = | 17mm |
| B | = | 17mm |
| C | = | 13mm |
| r min | = | 1mm |
| r1 min | = | 1mm |
| Dynamic load Cr | = | 38.2 kN |
| Static load Cor | = | 48 kN |
| Speed in grease | = | 7000 rpm |
| Speed in oil | = | 9400 rpm |
| a | = | 13.6mm |
| da min | = | 35.5mm |
| db max | = | 35mm |
| Da max | = | 49.5mm |
| Da min | = | 47mm |
| Db min | = | 52mm |
| Ca min | = | 3mm |
| Cb min | = | 4mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| e | = | 0.43 |
| Y1 | = | 1.39 |
| Y0 | = | 0.77 |
| Mass | = | 0.177 kg |
