SKU: 3208-2RS-EU

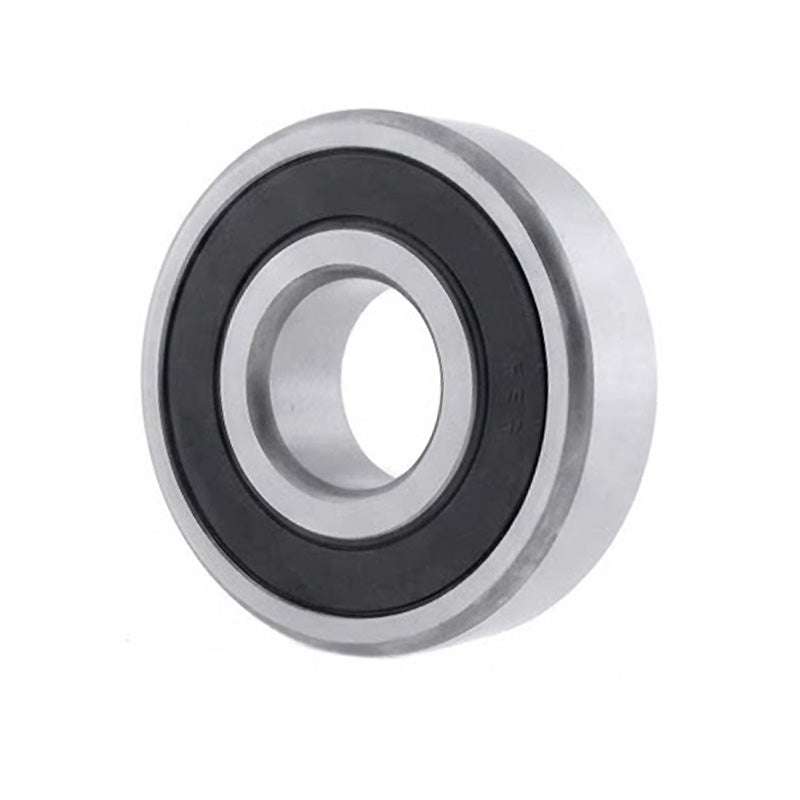

32082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
- Regular price
- €37.31 ex VAT
- Sale price
- €37,31
- Regular price
-
In stock
Quantity Price Breaks
10
€33.21
19
€31.34
29
€30.97
39
€30.59
49
€30.22
74
€29.85
99
€27.98
199
€27.61
249
€27.24
499
€26.86
999
€26.12
SKU:
3208-2RS-EU
32082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
- Regular price
- €37.31 ex VAT
- Sale price
- €37,31
- Regular price
-
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 40mm |
| D | = | 80mm |
| B | = | 30.2mm |
| Dynamic load C | = | 47.5 kN |
| Static load Co | = | 34 kN |
| Fatigue load limit Pu | = | 1.43 kN |
| Reference speed | = | 5600 rpm |
| Weight | = | 0.57 kg |
| d1 | = | 47.8mm |
| D1 | = | 72.1mm |
| r1r2 min | = | 1.1mm |
| a | = | 46mm |
| da min | = | 47mm |
| da max | = | 47mm |
| Da max | = | 73mm |
| ra max | = | 1mm |
