SKU: 3210-2Z-EU

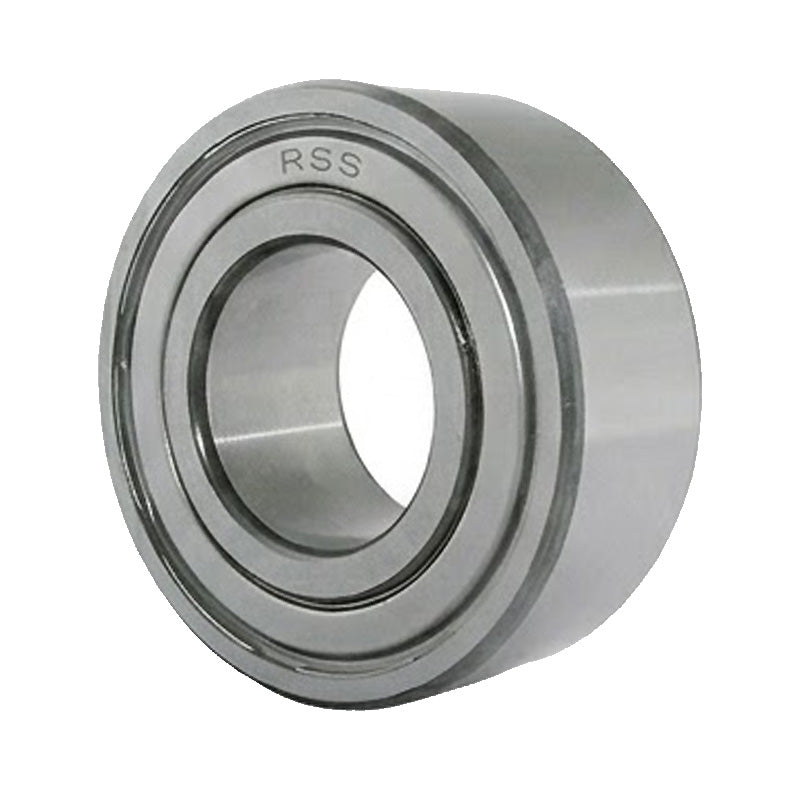

32102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x90x30.2mm
- Regular price
- €46.51 ex VAT
- Sale price
- €46,51
- Regular price
-
In stock
Quantity Price Breaks
10
€41.39
19
€39.07
29
€38.60
39
€38.14
49
€37.67
74
€37.21
99
€34.88
199
€34.42
249
€33.95
499
€33.49
999
€32.56
SKU:
3210-2Z-EU
32102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x90x30.2mm
- Regular price
- €46.51 ex VAT
- Sale price
- €46,51
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 30.2mm |
| Dynamic load C | = | 51 kN |
| Static load Co | = | 39 kN |
| Fatigue load limit Pu | = | 1.66 kN |
| Reference speed | = | 7000 rpm |
| Weight | = | 0.65 kg |
| d1 | = | 57.8mm |
| D1 | = | 82.1mm |
| r1r2 min | = | 1.1mm |
| a | = | 52mm |
| da min | = | 57mm |
| da max | = | 57.5mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
